Vertical 2 Cargo Drawer System | INEOS Grenadier

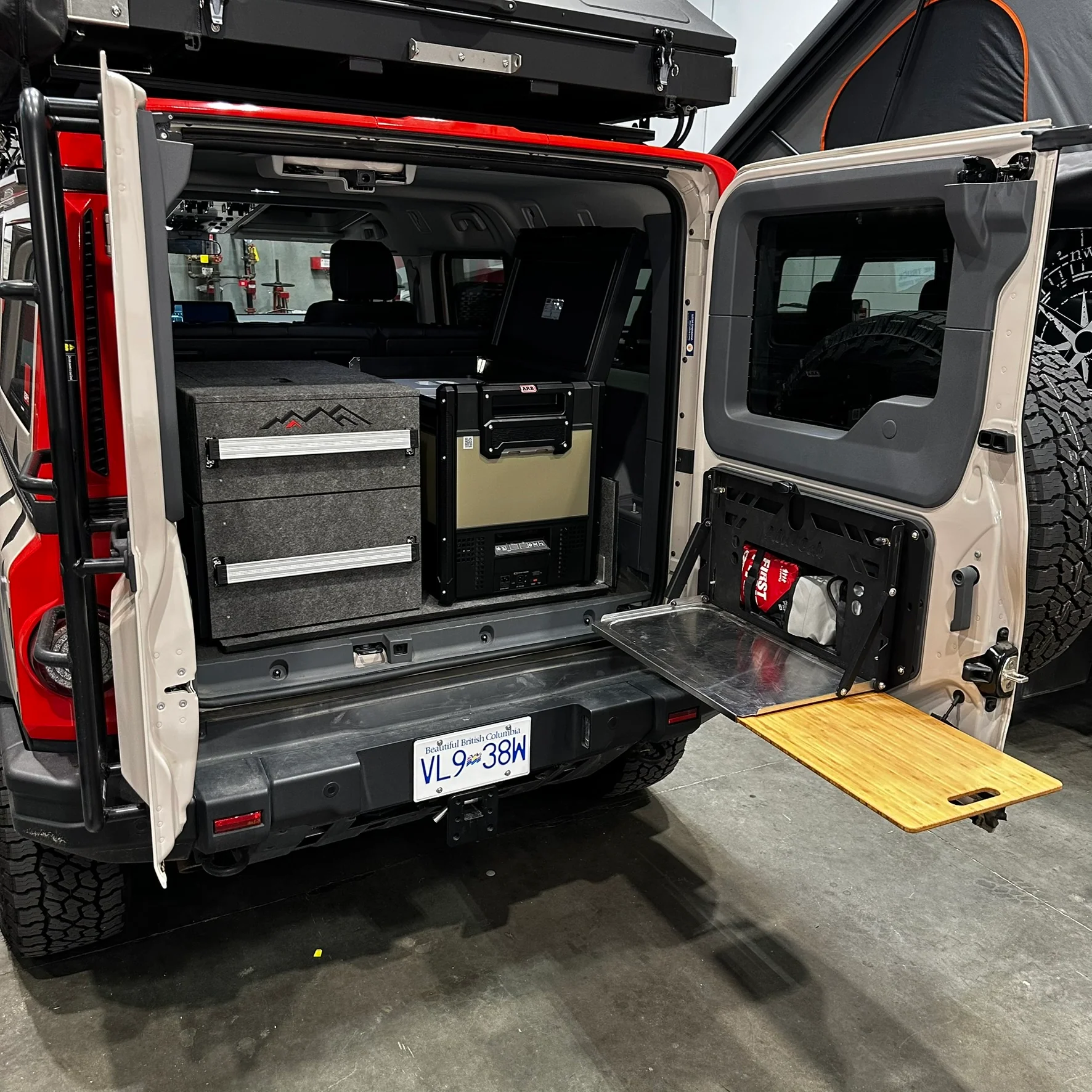

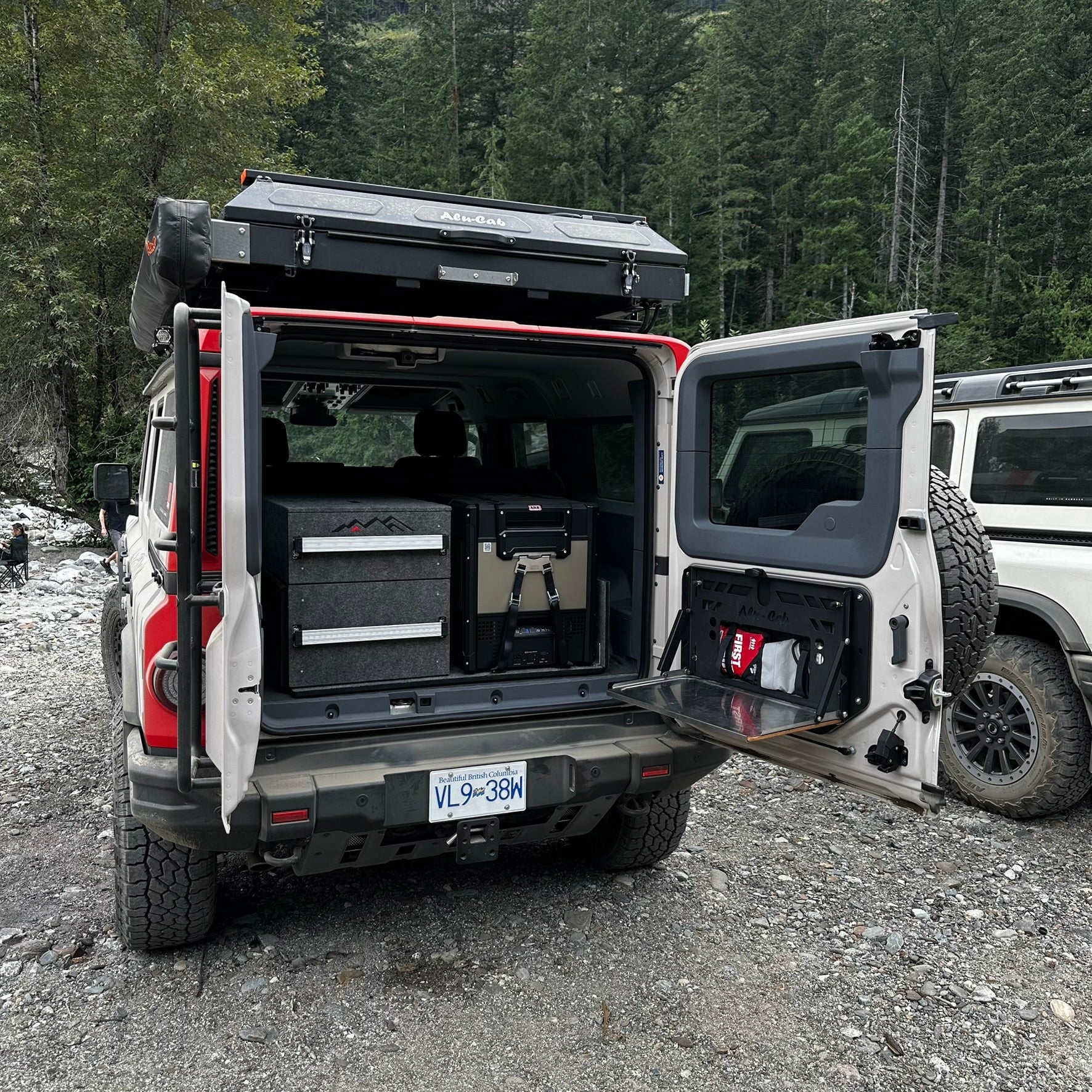

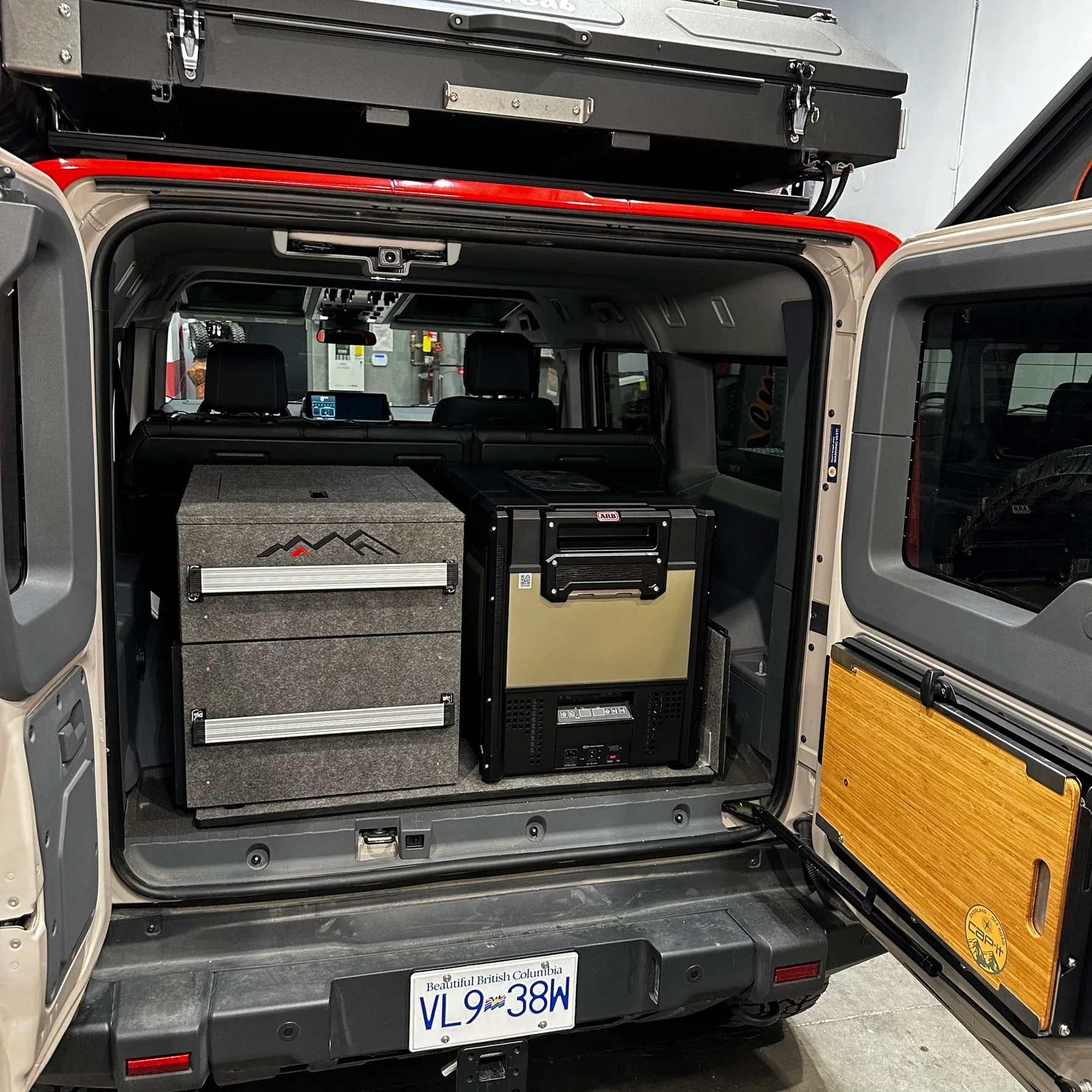

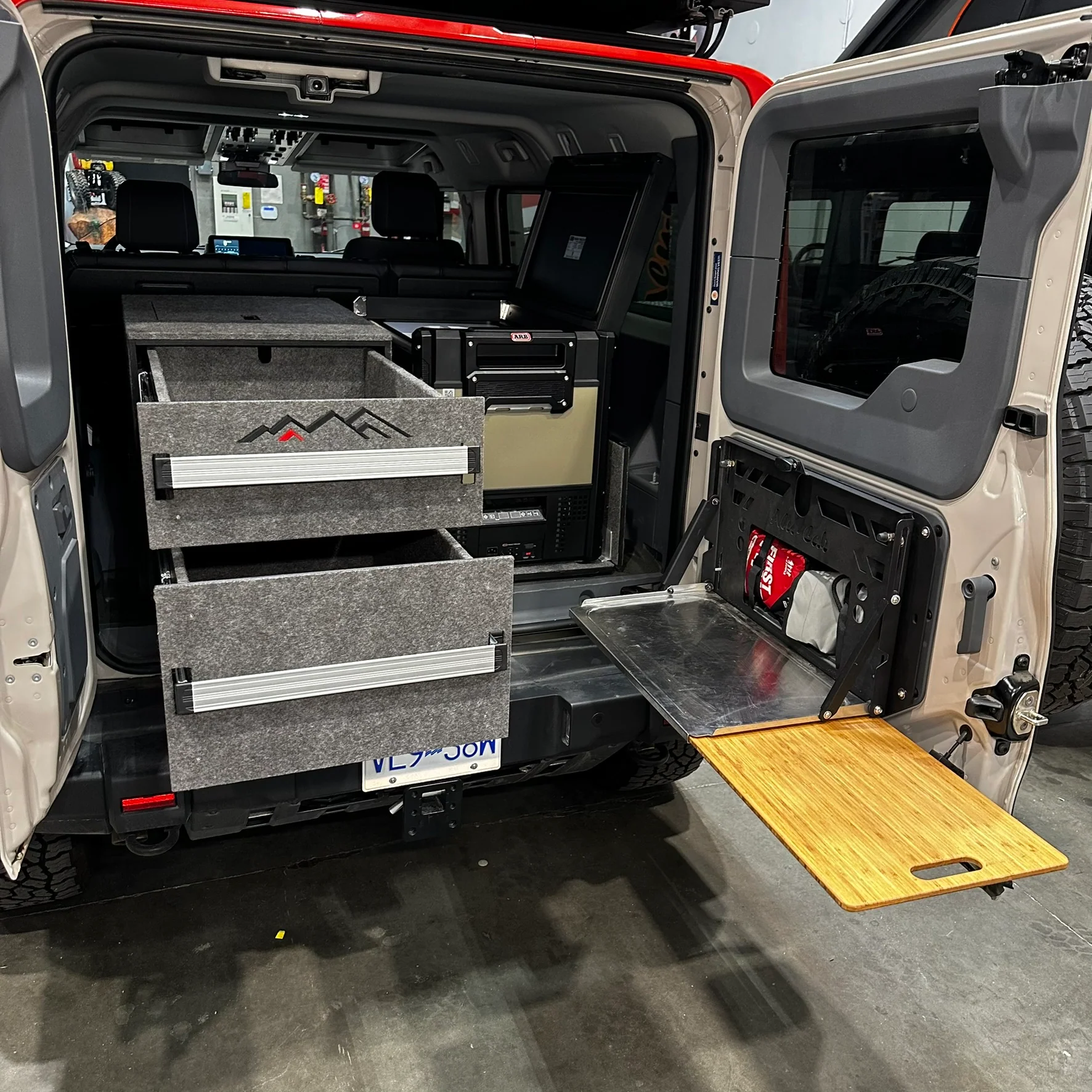

Organize and maximize your INEOS Grenadier rear cargo space with a custom rear cargo drawer systems that can fit a 73QT ARB ZERO 12v Fridge/Freezer

Designed in house by our very own outdoor enthusiast staff and built by Fahrt Systems (Calgary Alberta), we wanted make sure that it stands up to rigorous demands of overland excursions throughout Canada.

Built with very finest materials ensuring you receive a superior quality product to prevent any noises/rattles for endless hours of off-road driving

• Baltic Birch to ensure very high rigidity and dynamic load strength
• Cold rolled steel drawer slide with a load bearing capacity of 250 KG/pr (550 lbs) at full extension
• Single release drawer handles for easy operation
• Light-weight, highly durable fabric covering has a PVC backing for long lasting protection
• No Drilling required and uses the the rear factor tie-down tracks for strong securement
• Top release door latch cover to provide drawer access incase rear cargo doors cannot open

Vertical Drawer System Specs: (LxWxH)

• Overall Size: 33" x 42" x 22"

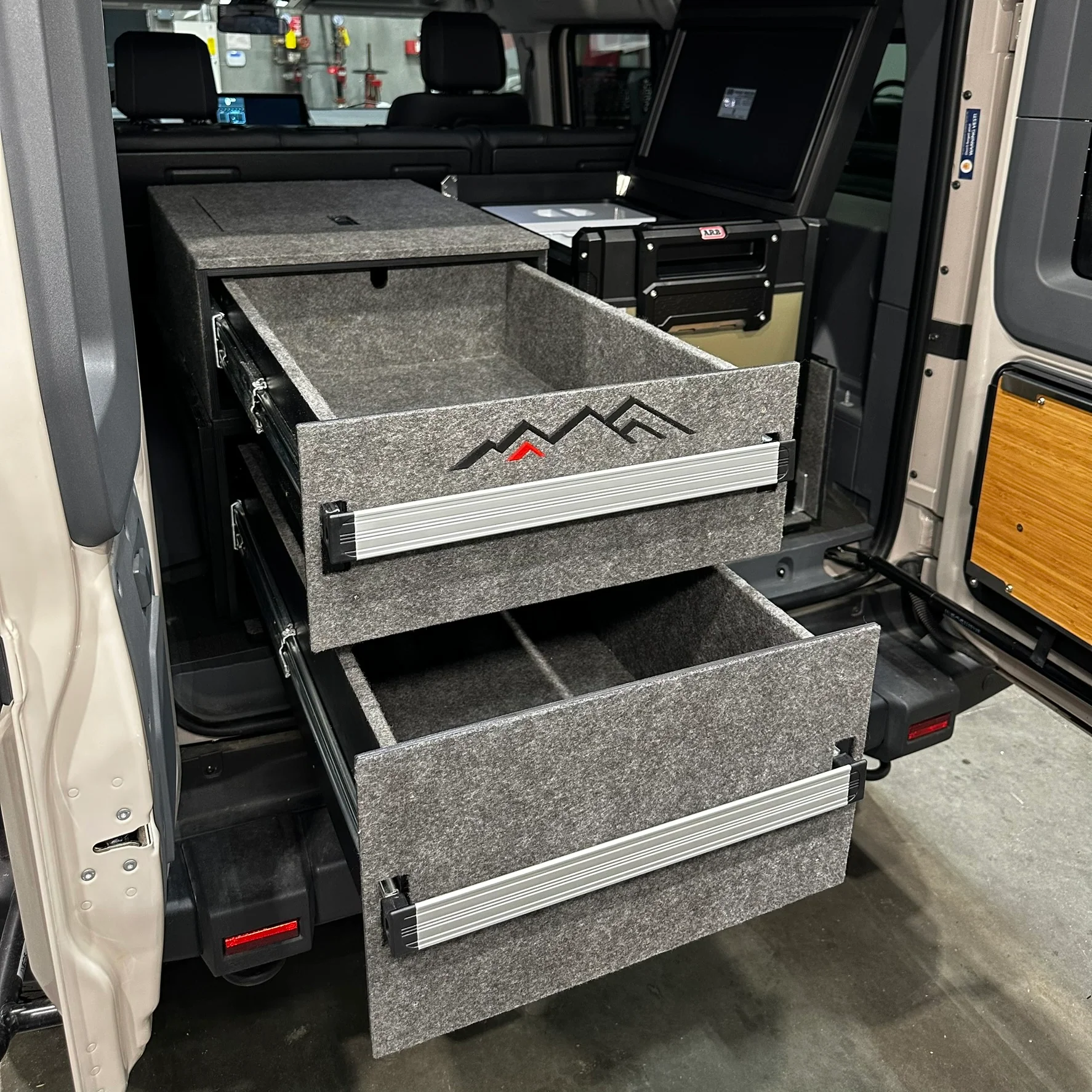

• Top Drawer Inside Dimensions: 25-1/2" x 16" x 6"

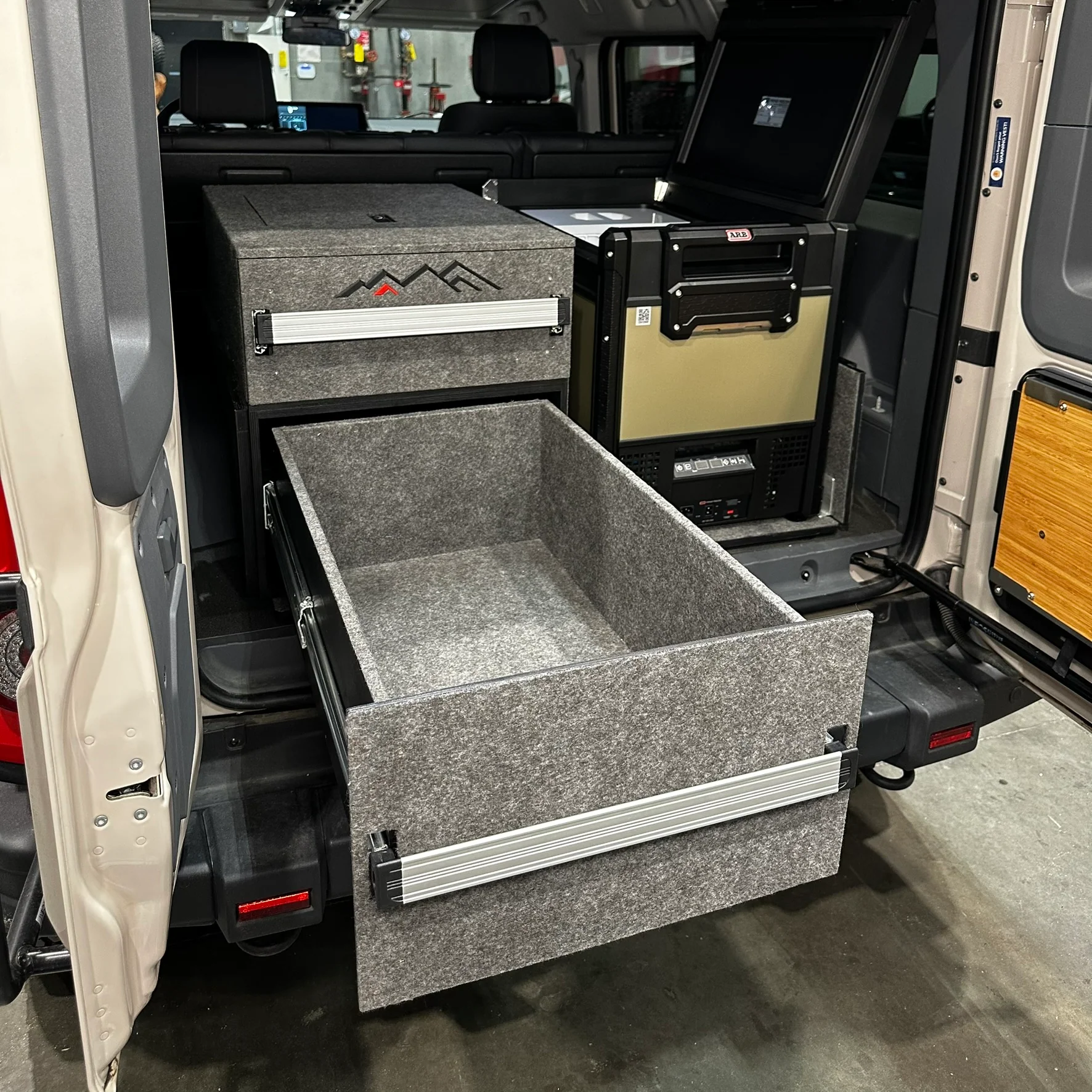

• Bottom Drawer Inside Dimensions: 29" x 16" x 9-1/2"

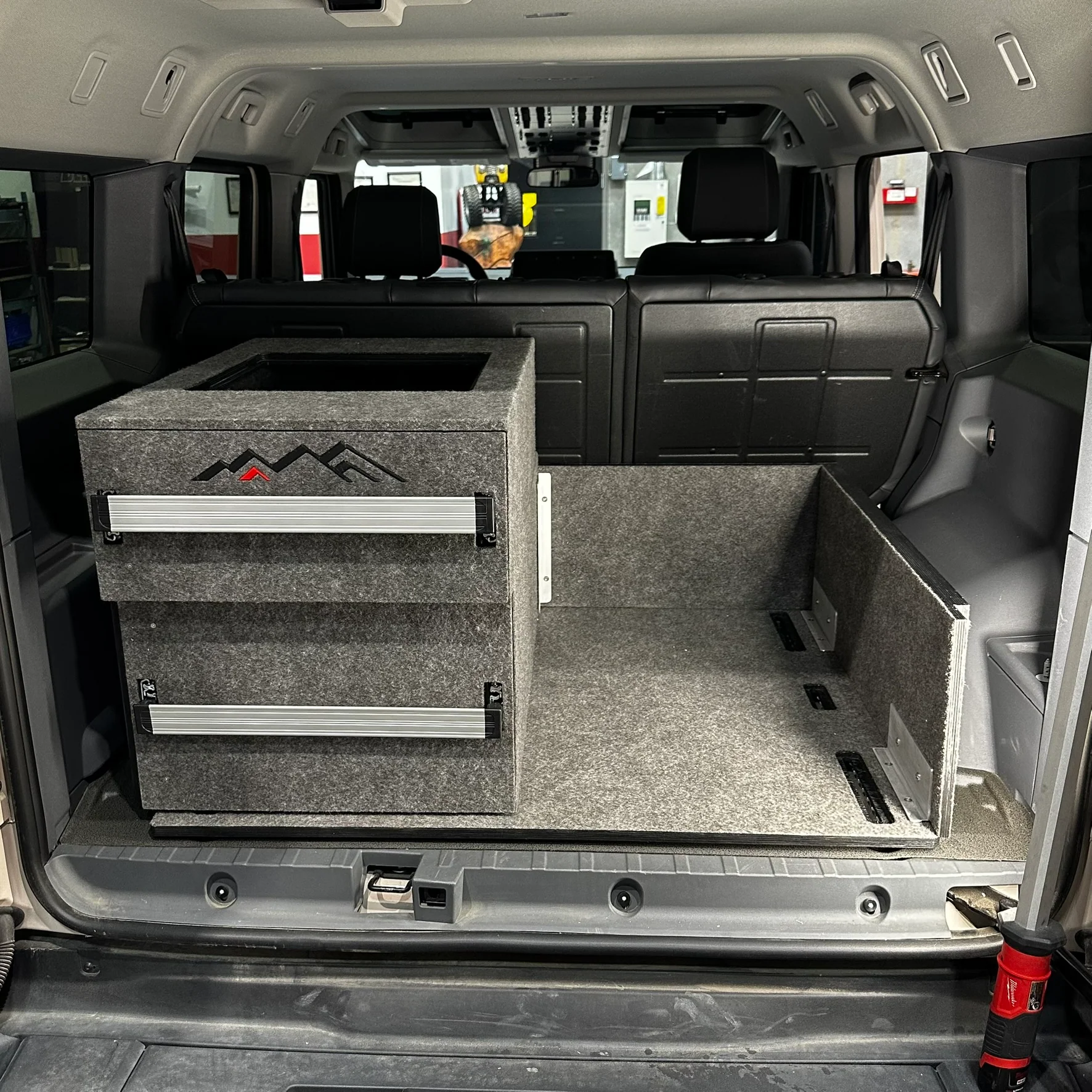

• Fridge Deck: 32" x 20.5"

Fridge Application Shown: (sold separately / not included)

• 73QT ARB ZERO 12v Fridge/Freezer



NOTE: Allow approximately 4-6 weeks eta
