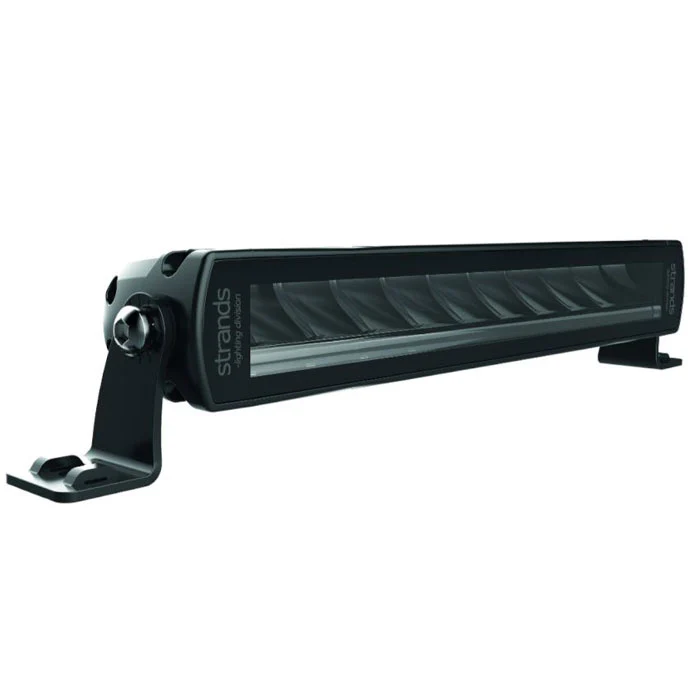

Siberia 12" Single Row Light Bar

Strands Siberia 12" SR Single Row 809170

Welcome to the future. This is Siberia. A single row LED bar, made for your vehicle. It is more than innovative. Siberia is pushing the boundaries and redefining what an LED bar is. We are talking cutting-edge design in combination with revolutionary features. All models are E-approved.

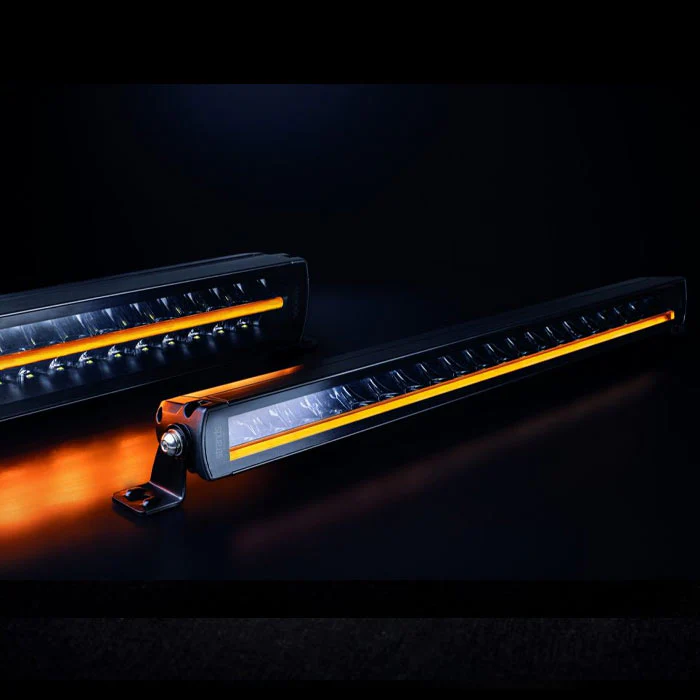

DUAL POSITION LIGHT
Rest your eyes on the unique dual position light that runs in a line along the bottom of the bar. Express your style and personality by choosing the position light colour between amber and white.

Siberia is also available in a double-row models – perfect for trucks and other larger vehicles.

Wiring Harness Sold Separately

• Harness Adapter 270438
• Relay Harness for Single Light 72999
• Relay Harness for Two Lights 73240

Specifications:

Type of lamp LED
Voltage (V DC) 10-40V DC
Consumption (w) 12V High beam: 47
Consumption (w) 24V High beam: 47
Consumption specific function (w) 12V White position light: 3
Amber position light: 7
Consumption specific function (w) 24V White position light: 3
Amber position light: 7
Theoretical lumen 4000
Actual lumen 3105
1 LUX @ m 425
IP-class IP67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White
Beam pattern Combo
Position light Yes. white and amber

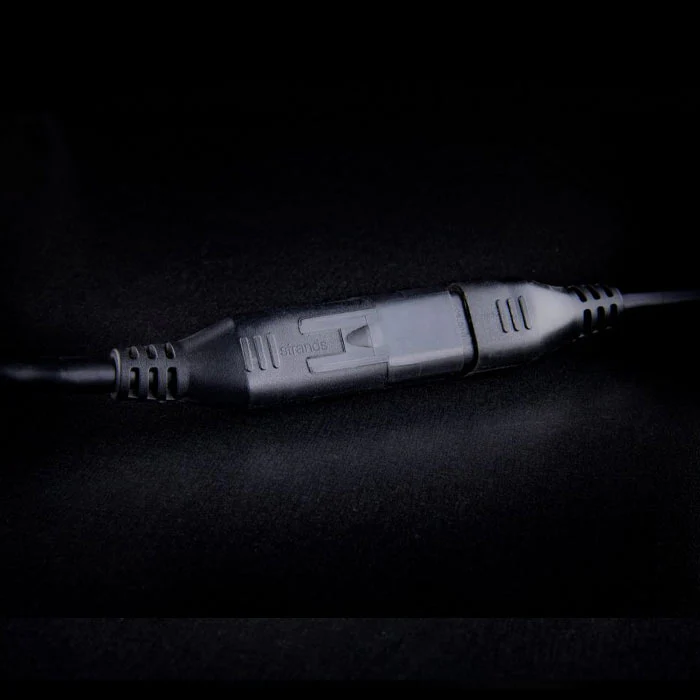

Connection DT-4
Cable length (mm) 500

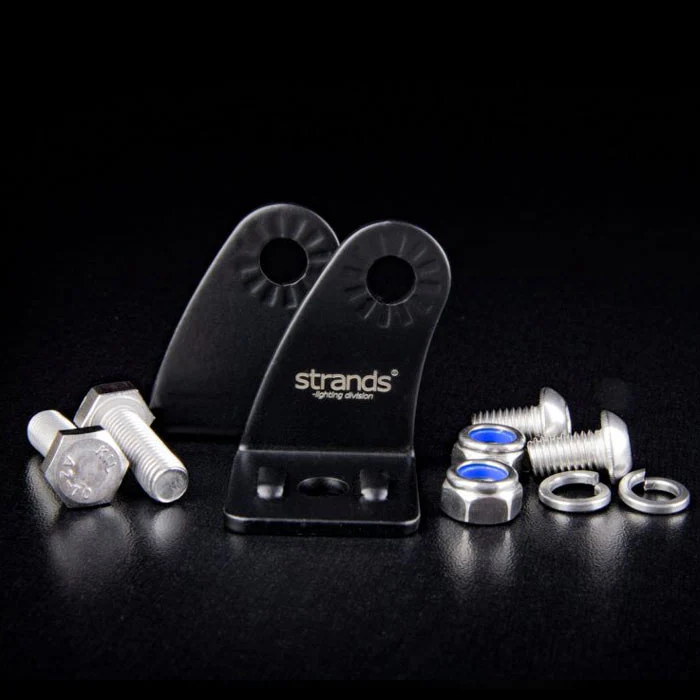

Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 300.6
Depth (mm) 55.5
Height (mm) 45
Height including bracket (mm) 65
Operating temperature -20°C – +45°C
ADR-approved No
E-approved Yes
According to regulation ECE R112
Reference number 37.5
EMC ECE R10
3 Year Function Warranty
