Simple, reliable wiring for work lights, camp lights, and auxiliary lighting.

The STEDI Single Output Wiring Harness is a fully assembled 12V wiring solution designed for LED work lights, camp lights, scene lights, and other auxiliary lighting applications that do not require high beam activation.

Built with heavy-duty components, relay protection, UV-resistant insulation, and a simple ON/OFF switching system, this harness makes it easy to power your lighting setup cleanly and reliably.

Whether you're wiring canopy lights, reverse lights, work lights, or campsite lighting, this harness provides a straightforward plug-and-play solution without unnecessary complexity.

Why Choose the STEDI Single Output Harness?

• Simple ON/OFF Operation, ideal for camp lights, work lights, and auxiliary lighting

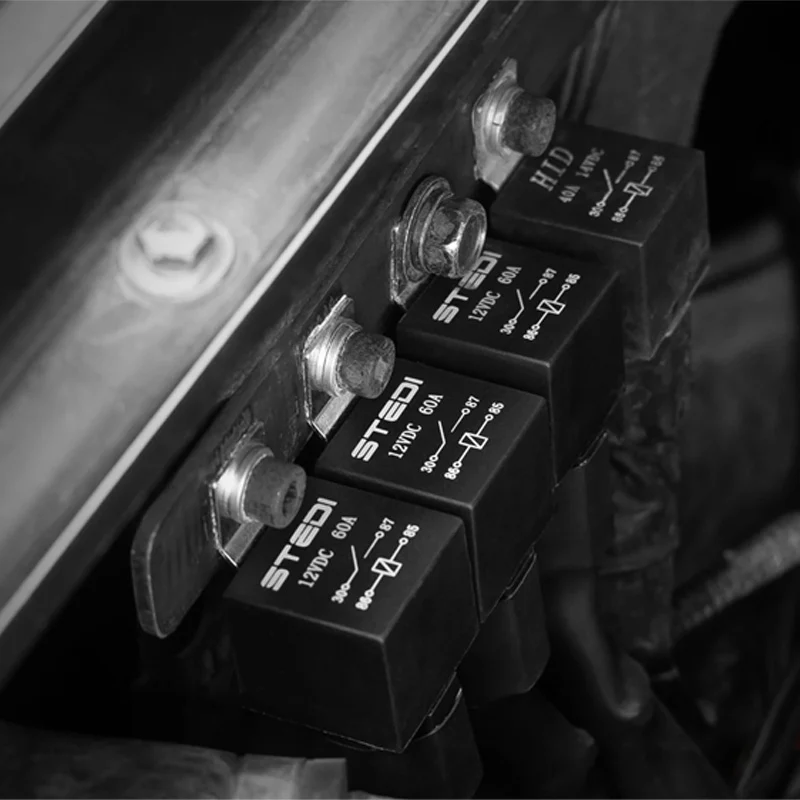

• Heavy-Duty Relay Protection, built around a 60A relay for reliable power handling
• Fully Assembled Harness, ready for installation out of the box

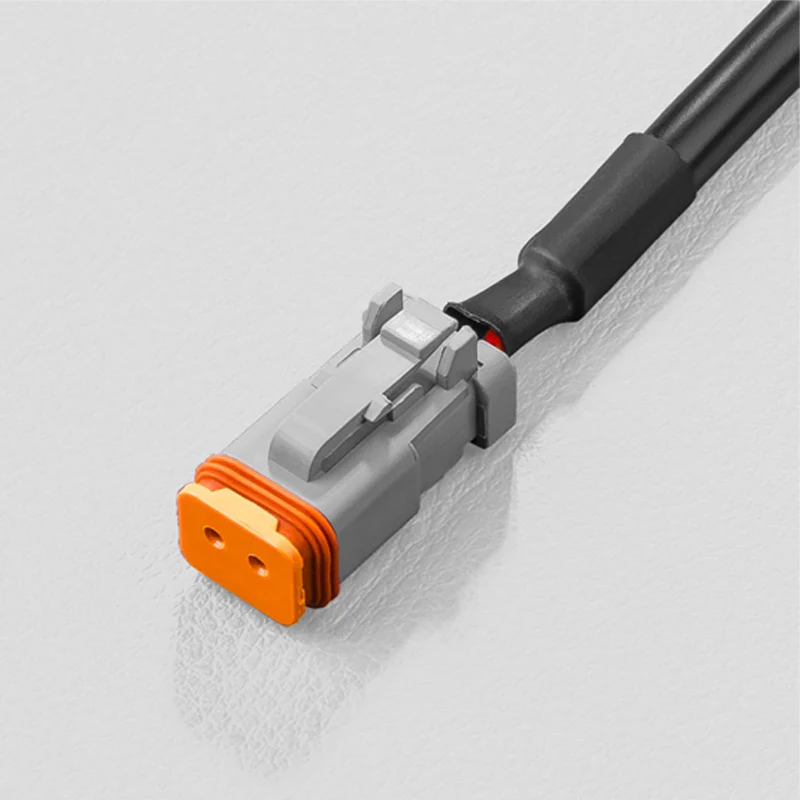

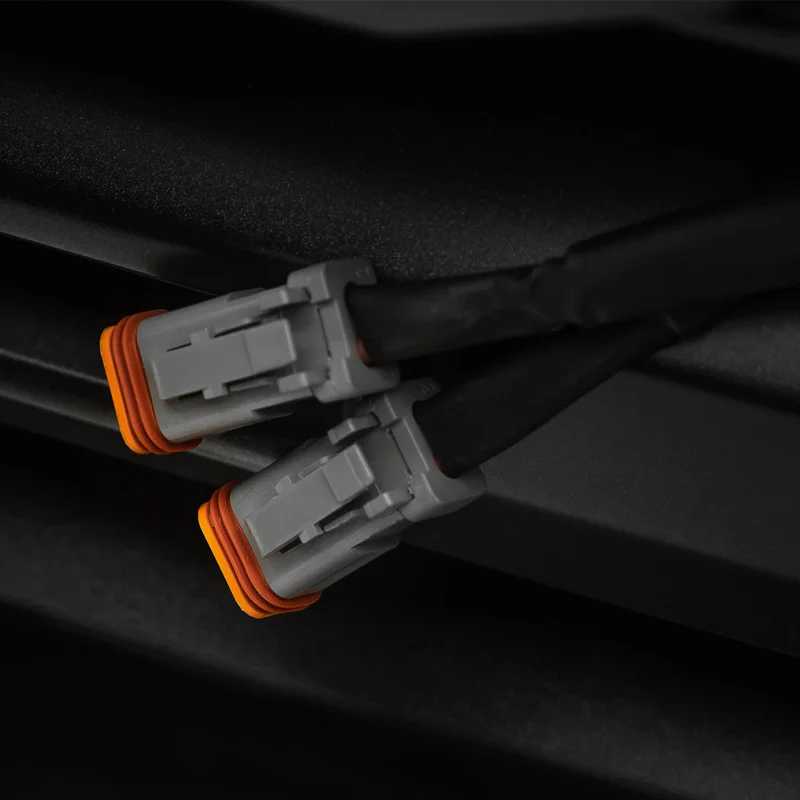

• Single DT Connector Output, designed for one light or expandable lighting setups
• UV-Resistant Insulation, designed for harsh outdoor and automotive environments
• No High Beam Integration Required, perfect for standalone lighting systems

Perfect for Camp & Work Lighting

This harness is specifically designed for lighting systems that operate independently from your vehicle’s high beams.

Ideal applications include:

• Canopy lighting
• Camp lighting
• Work lights
• Reverse lighting
• Rock lights
• Engine bay lighting
• Trailer lighting
• Utility and service body lighting

The included ON/OFF switch gives you direct manual control over your auxiliary lighting setup.

Built for Real-World Conditions

The STEDI harness is built for demanding automotive, touring, and off-road environments.

• Heavy-duty relay protection

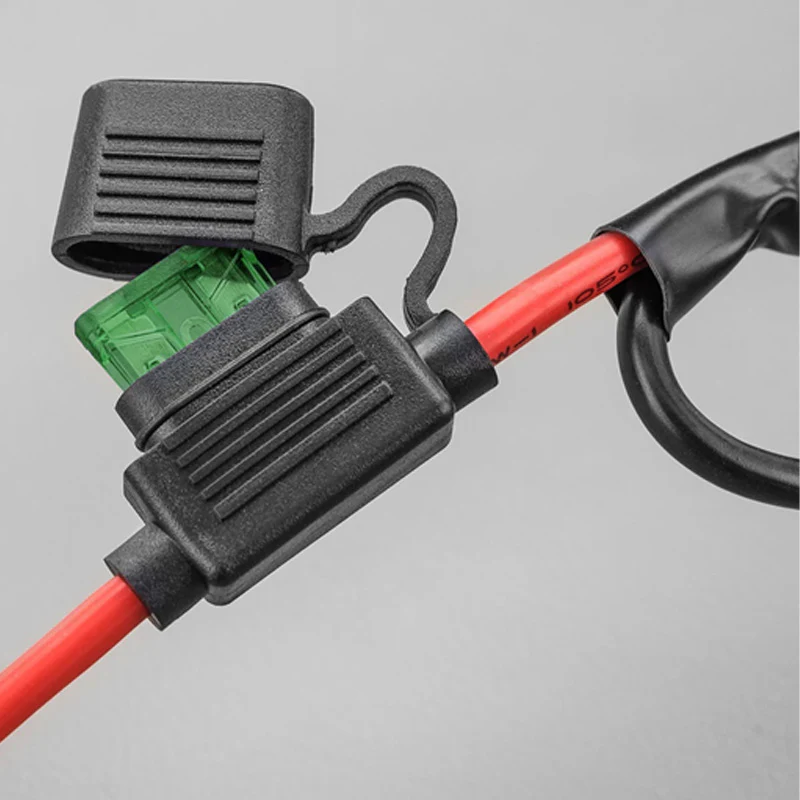

• Inline fuse protection
• UV-resistant wiring insulation
• Pre-terminated connectors
• Clean, simplified installation

The included 60A relay also allows the harness to support larger lighting loads when required.

Technical Specifications

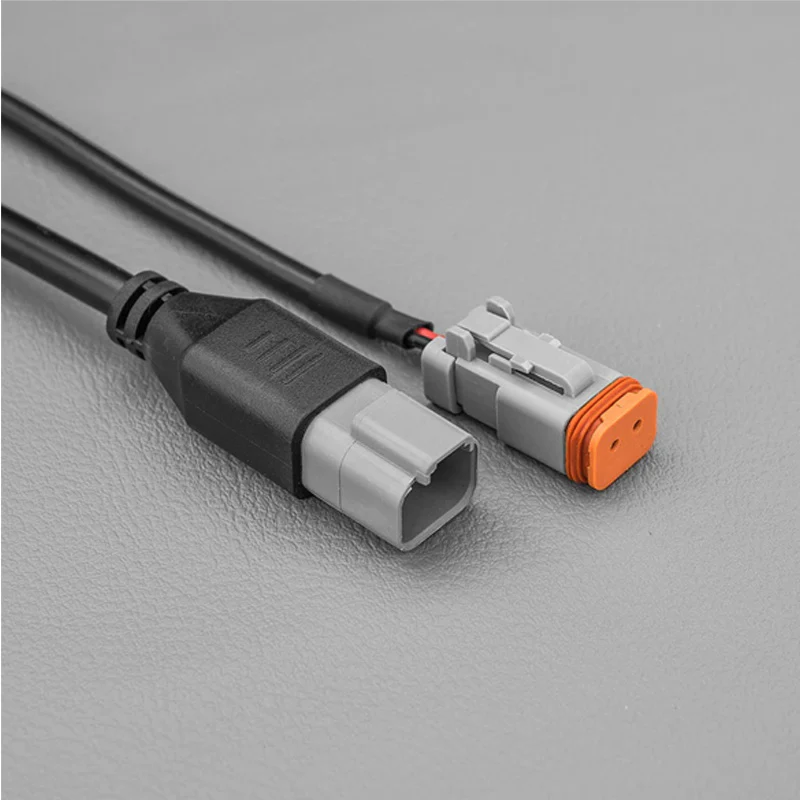

• Connector Type: Single output connector

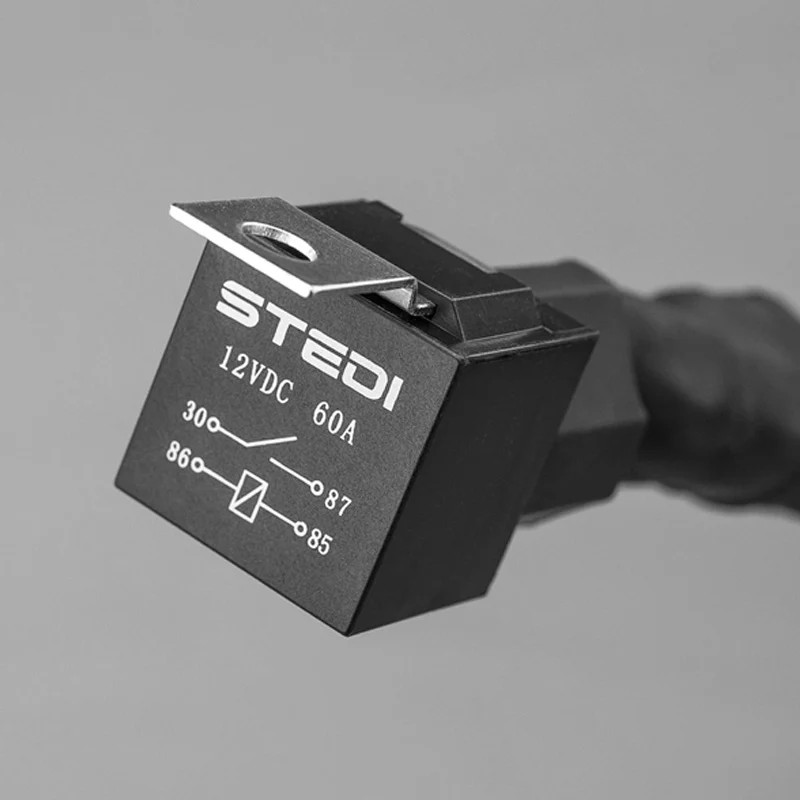

• Relay Rating: 60A
• Fuse Rating: 30A
• Voltage: 12V DC
• Total Wiring Length: 4.8m
• Relay to Switch Length: 2.8m
• Light Connector to Relay Length: 2.0m

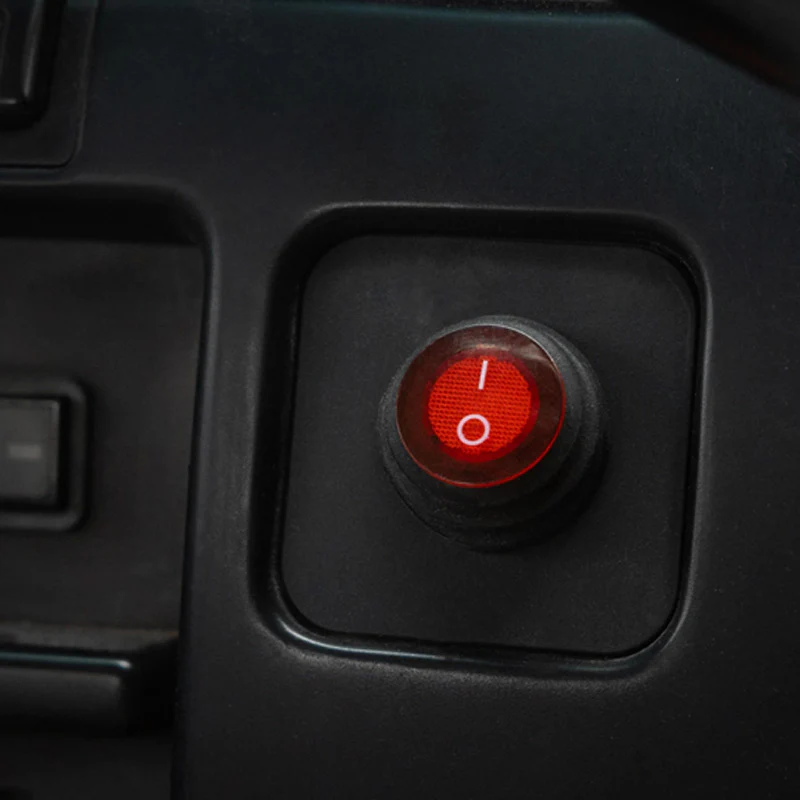

• Switch Type: Push-button ON/OFF switch
• Insulation: UV-rated

Important Note

This harness is not designed for high beam-triggered driving lights.

If you require high beam integration for driving lights or light bars, please refer to the STEDI SMART Harness™ range.

What’s Included

• 1 x STEDI Single Output Work Light Harness
• 20mm push-button switch
• Integrated relay and fuse protection
• User instruction manual

See It In Action

Watch the STEDI wiring harness overview and installation video below.

Cap-it Expert Take

Not every lighting setup needs complicated high beam integration.

If you're wiring camp lights, work lights, canopy lighting, or scene lighting, this harness keeps things simple, reliable, and clean.

Easy install. Heavy-duty components. No unnecessary complexity.
