Old Man Emu MT64 Suspension Kit – Toyota Land Cruiser (2024+)

Old Man Emu MT64 Suspension Kit – Toyota Land Cruiser (2024+)

The Old Man Emu MT64 Suspension Kit is engineered for adventure, offering a bolt-on suspension upgrade with large-bore monotube shocks, adjustable lift height, and digressive valving for smooth control over rough terrain. Designed for the 2024+ Toyota Land Cruiser, this system delivers exceptional ride quality whether you're commuting, towing, or tackling backcountry routes.

Choose from two load-specific configurations to best match your vehicle build—whether you’re running light or hauling gear daily.

---

Choose Your Suspension Setup:

Kit Option	Recommended For	Rear Coil Rating	Coil Part #
Medium Load (Most Popular)	Stock or lightly equipped builds	Standard	3338
Heavy Load (440 lb)	Constant rear load (e.g. drawers, fridge, gear)	440 lbs constant	3339

🔧 All kits include the same front coilover setup. The only difference is the rear coil spring selection based on load requirements.

---

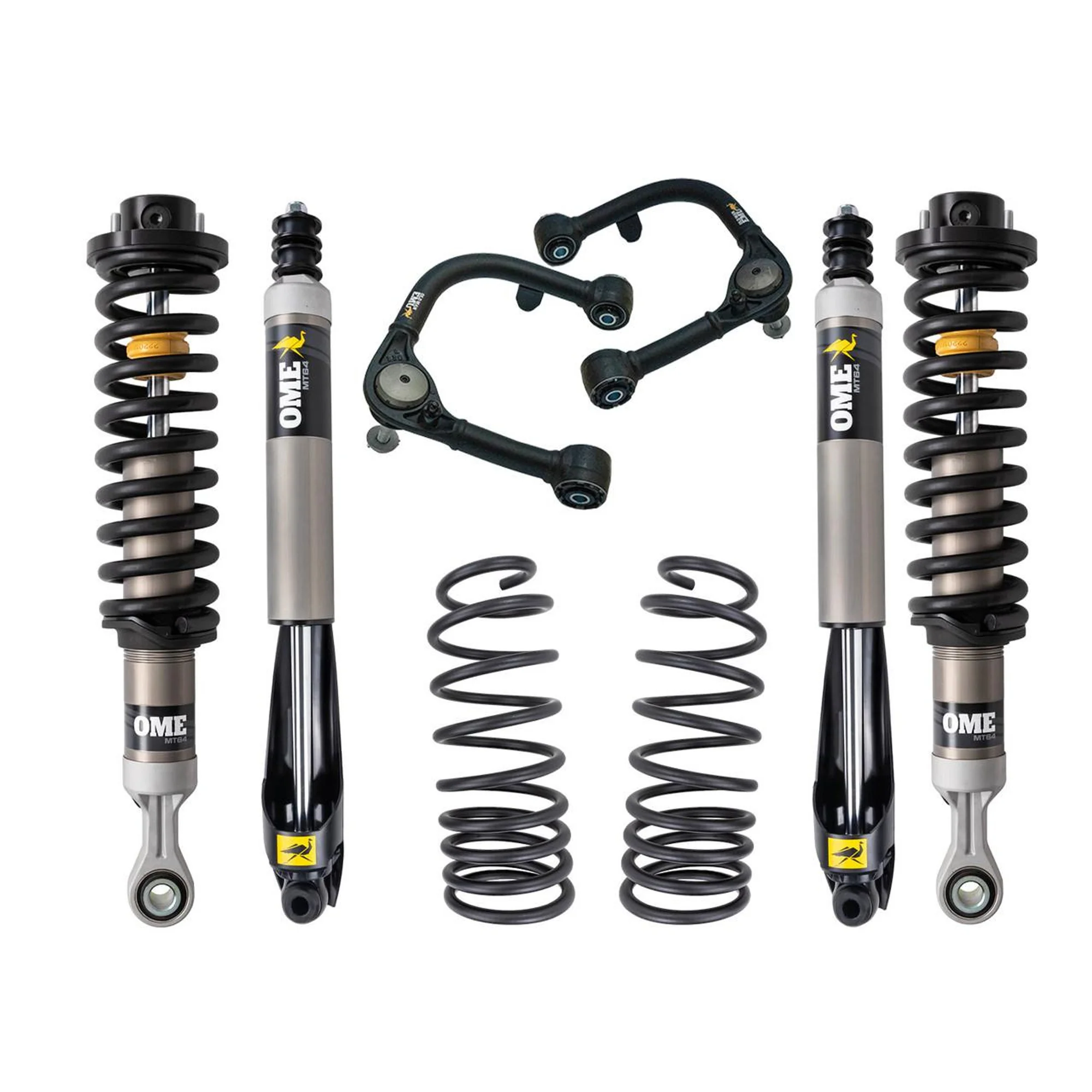

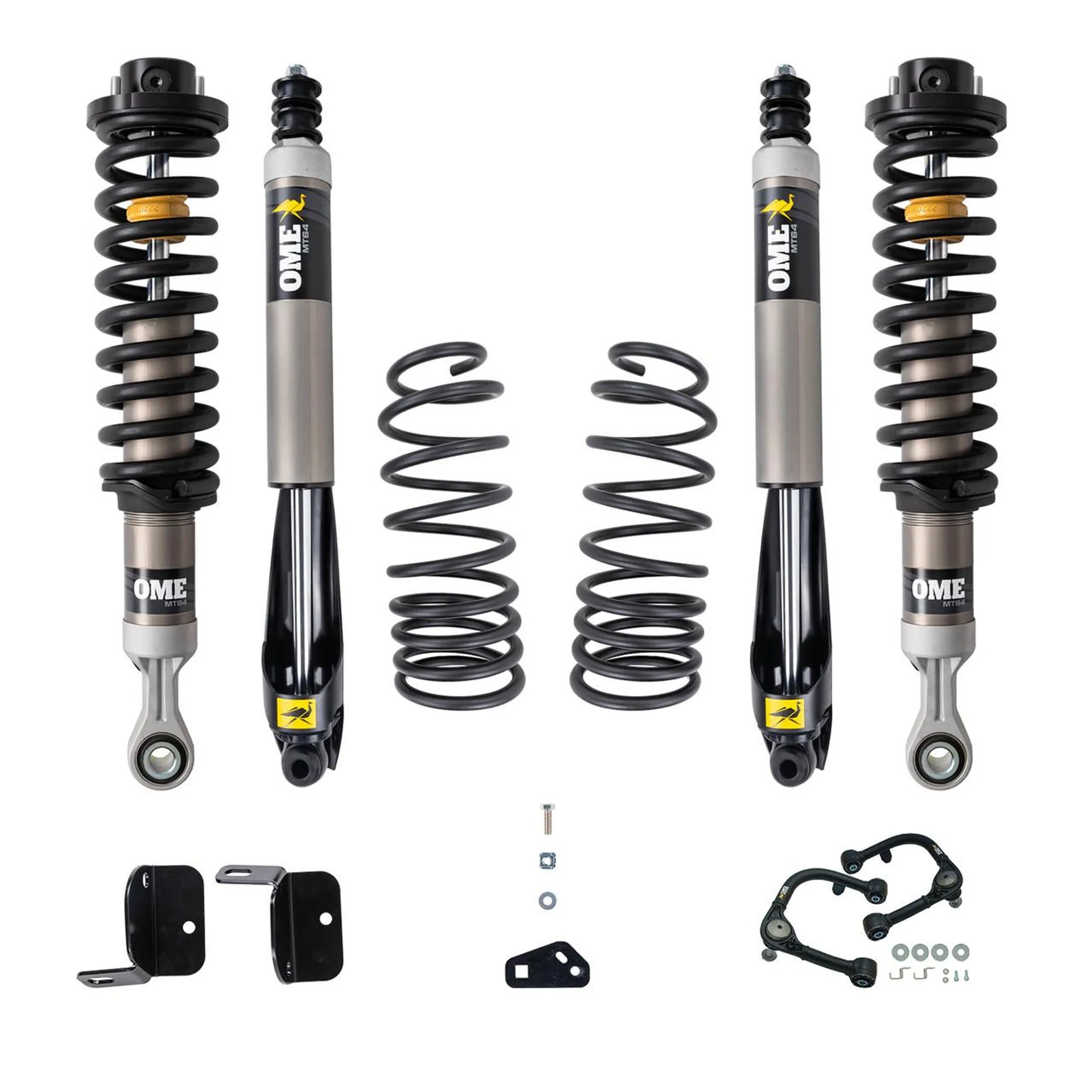

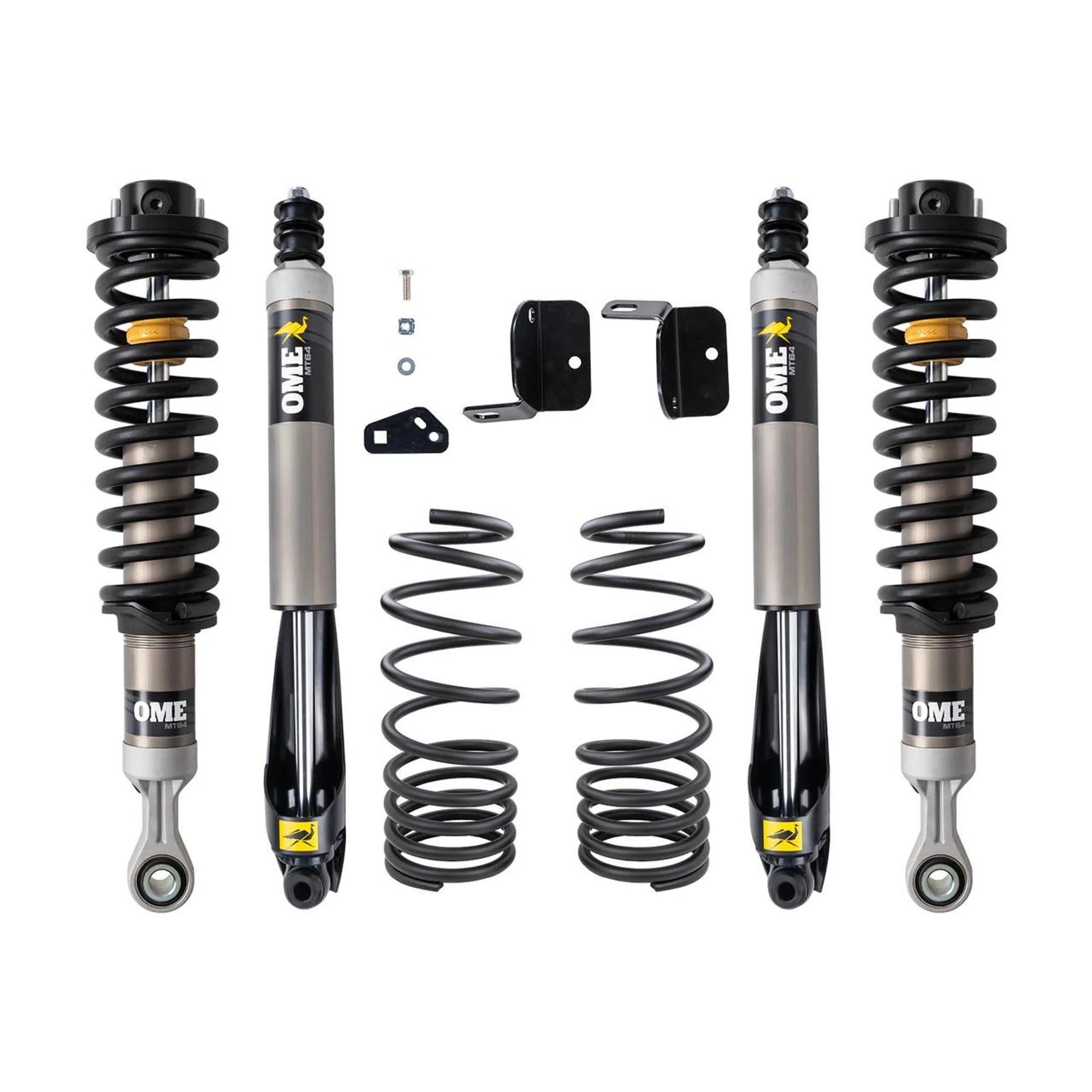

What’s Included in Every Kit:

• MT64 Front Coilover Struts (LH & RH) - Part #: MT64996003 (x2)

• MT64 Rear Shocks - Part #: MT64601041 (x2)

• Rear Coil Springs (based on selected variant) - Part #: 3338 or 3339

• Brake Line Spacer Kit - Part #: FK134

• Rear Sway Bar Bracket Kit - Part #: FK137

✅ Optional Add-On: ARB Upper Control Arms – Part #: UCA0021
Recommended for vehicles running a 3" front lift to maintain proper geometry and alignment.

---

MT64 System Highlights:

• Front lift range: 1.75" to 3" via 6-position adjustable snap ring

• Rear lift: 2"

• 2.8" aluminum monotube body for improved oil volume and precise tuning

• Digressive valving for quick adaptation to terrain changes

• Hydraulic top-out zone for full-extension damping

• Aerospace-grade aluminum body: dissipates heat 15x faster than steel

• Fully assembled coilovers for easy bolt-in installation

• Tuned specifically for the 2024+ Toyota Land Cruiser (North American spec)
