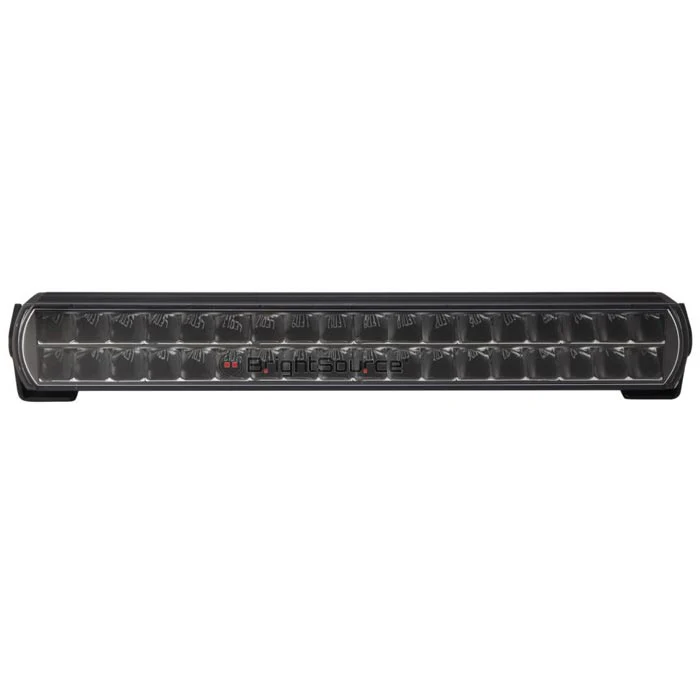

BrightSource Titanium Double Row Light Bar
BrightSource Titanium Double Row Light Bar
Features:
Powerful Combination Driving/Flood Light
Dark lens cosmetic with stunning bright white output
Smooth, clean housing appearance with no bezel housing
Side and Back Mount bracket options
5 Year Limited Warranty
Specifications:
LED: 36 x 5W LG

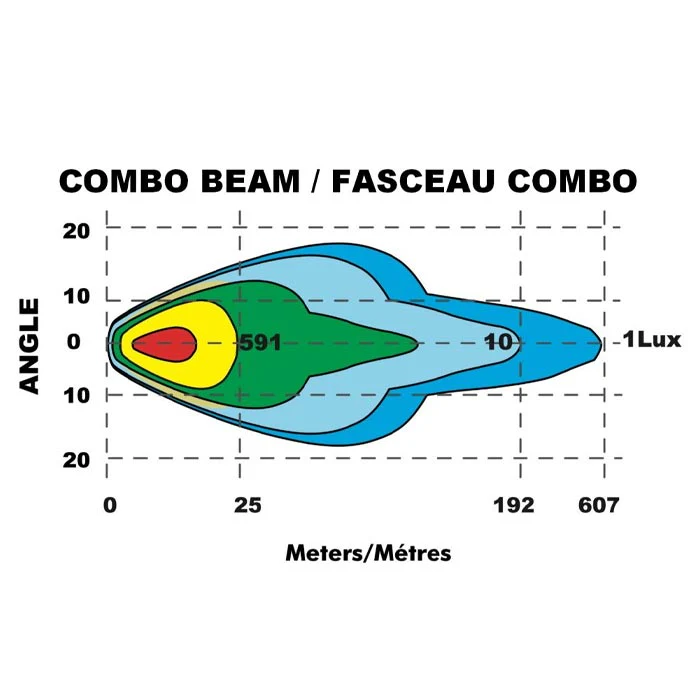

Beam Pattern: Combination
Colour Temperature: 6500K
Luminous Flux: 16400 (Raw) 14000 (Effective)
Lux: 1 Lux @ 607M
IP Rating: IP68-69K
Voltage: DC9-30V
Wattage: 180W
Amperage 12V/24V: 12.5A/5.9A
Reverse Polarity Protection: Yes
Over-Under Volt. Protection: Yes
Electro Thermal Management: Yes
Side Reflecting Optic System: Yes
Temperature Range: -40 – +60°C
Housing Material: ADC12 Aluminum with Anodized Polyester Powdercoat
UV and Shock Resistant: Yes
Lens Material: Lexan Polycarbonate
Mounting Bracket: Side and Bottom
Dimensions: 525 x 68 x 80mm (20.7 x 2.7 x 3.15″)
Harness: Sold Separately (PN 72999)
LED Lifespan: 50,000+ hrs
Certification: ROHS
Warranty: 5 Year Limited
Original: $339.56
-65%$339.56
$118.85
Description
BrightSource Titanium Double Row Light Bar
Features:
Powerful Combination Driving/Flood Light
Dark lens cosmetic with stunning bright white output
Smooth, clean housing appearance with no bezel housing
Side and Back Mount bracket options
5 Year Limited Warranty
Specifications:
LED: 36 x 5W LG
Beam Pattern: Combination
Colour Temperature: 6500K
Luminous Flux: 16400 (Raw) 14000 (Effective)
Lux: 1 Lux @ 607M
IP Rating: IP68-69K
Voltage: DC9-30V
Wattage: 180W
Amperage 12V/24V: 12.5A/5.9A
Reverse Polarity Protection: Yes
Over-Under Volt. Protection: Yes
Electro Thermal Management: Yes
Side Reflecting Optic System: Yes
Temperature Range: -40 – +60°C
Housing Material: ADC12 Aluminum with Anodized Polyester Powdercoat
UV and Shock Resistant: Yes
Lens Material: Lexan Polycarbonate
Mounting Bracket: Side and Bottom
Dimensions: 525 x 68 x 80mm (20.7 x 2.7 x 3.15″)
Harness: Sold Separately (PN 72999)
LED Lifespan: 50,000+ hrs
Certification: ROHS
Warranty: 5 Year Limited
