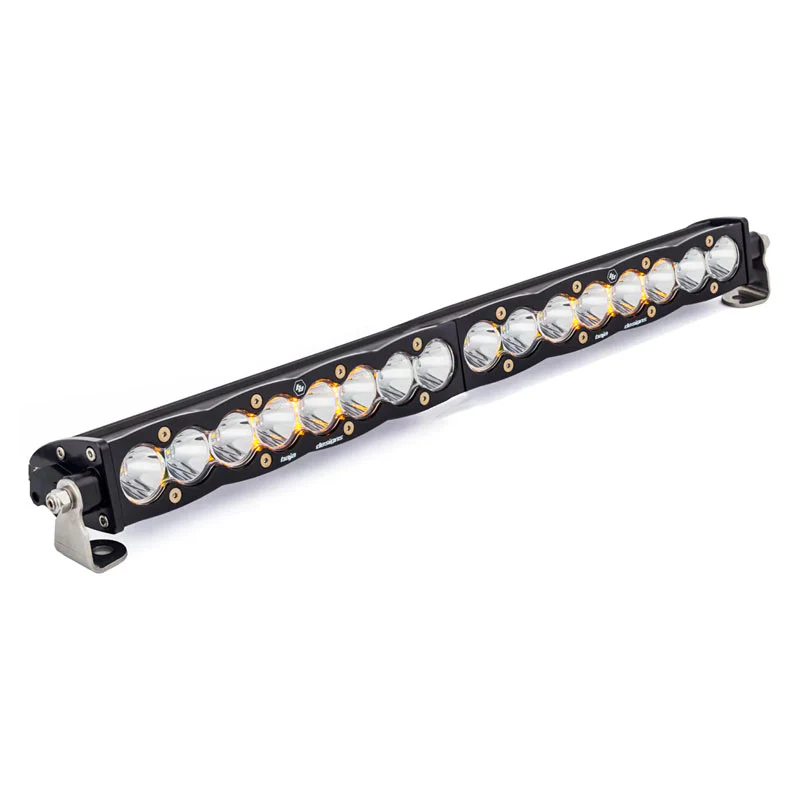

Baja Designs S8 20" LED Light Bar
Baja Designs S8 20" LED Light Bars - Driving/Combo
The S8 offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10" section, the S8 is available from 10" to 50" and also features high-performance reflectors, and an amber backlit feature. The S8 is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! Please note that this light does NOT include a harness and the applicable harness to this light is 640122.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Please note that this light does NOT include a harness and the applicable harness to this light is 640122.
Specifications
| Amperage Rating (A) | 4.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 6324 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |

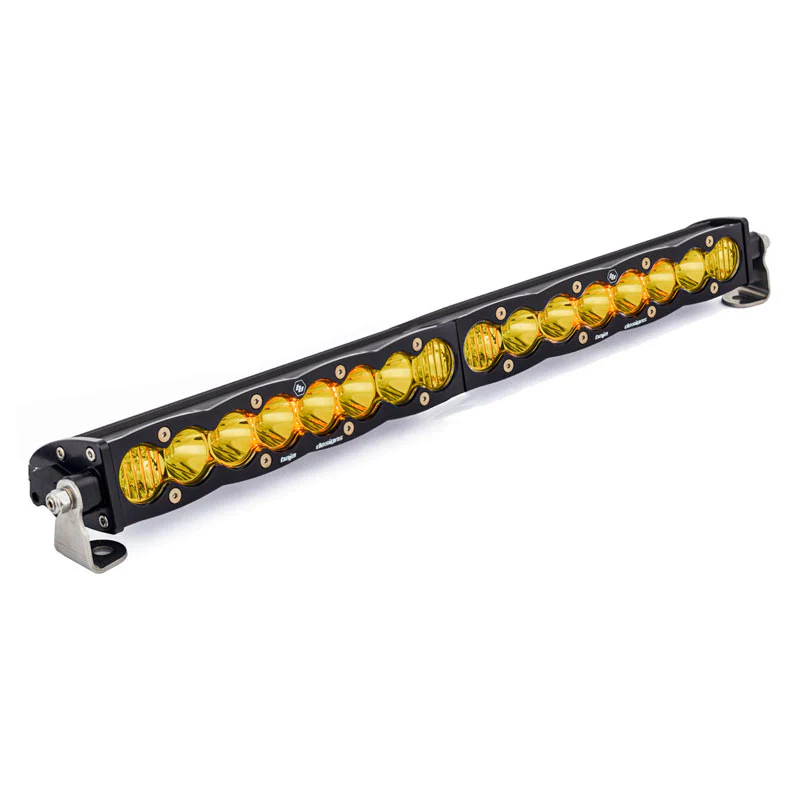

| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 8 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 57.960 |
| Wiring Harness Included | No |
| Depth (in.) | 3 |
| Height (in.) | 1.600 |
| Length (in.) | 10 |
| Weight (lbs.) | 2.400 |
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
