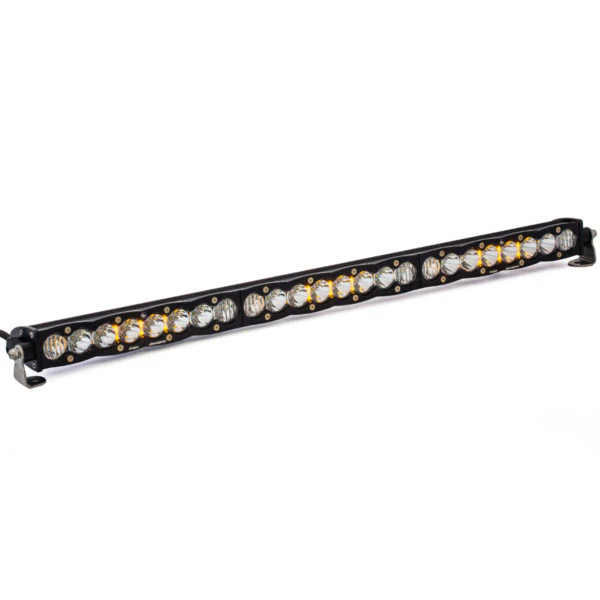

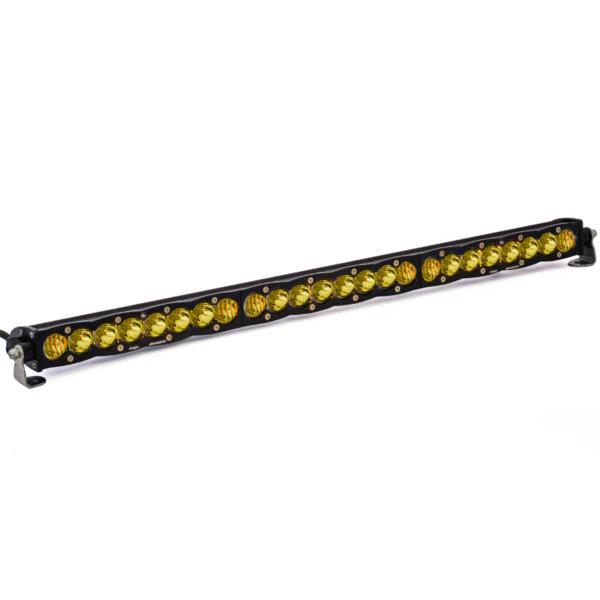

Baja Designs S8 30" LED Light Bar
Baja Designs S8 30" LED Light Bars -Â Driving/Combo
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 19,050 lumens of pure power, low amp draw of 12 amps, and nearly 50,000 hours of LED life.
The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Please note that this light does NOT include a harness and the applicable harness to this light is 640122.
Specifications
| Product Type | S8 30 Inch LED Light Bar |
| Description | Driving/Combo; Clear or Amber |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam/Amber Backlit Feature |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 24 |
| Brightness (Lumens) | 19,050 |
| Wattage (W) | 180 |
| Amperage Rating (A) | 12.0 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
| Universal or Specific | Universal |
Dimensions
| Length (in.) | 30 |
| Height (in.) | 1.6 |
| Depth (in.) | 3 |
| Weight (lbs.) | 6.5 |
Â
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Â
Description
Baja Designs S8 30" LED Light Bars -Â Driving/Combo
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 19,050 lumens of pure power, low amp draw of 12 amps, and nearly 50,000 hours of LED life.
The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Please note that this light does NOT include a harness and the applicable harness to this light is 640122.
Specifications
| Product Type | S8 30 Inch LED Light Bar |
| Description | Driving/Combo; Clear or Amber |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam/Amber Backlit Feature |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 24 |
| Brightness (Lumens) | 19,050 |
| Wattage (W) | 180 |
| Amperage Rating (A) | 12.0 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
| Universal or Specific | Universal |
Dimensions
| Length (in.) | 30 |
| Height (in.) | 1.6 |
| Depth (in.) | 3 |
| Weight (lbs.) | 6.5 |
Â
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
