Alu-Cab Water Tank Kit | 50L

Alu-Cab Water Tank Kit

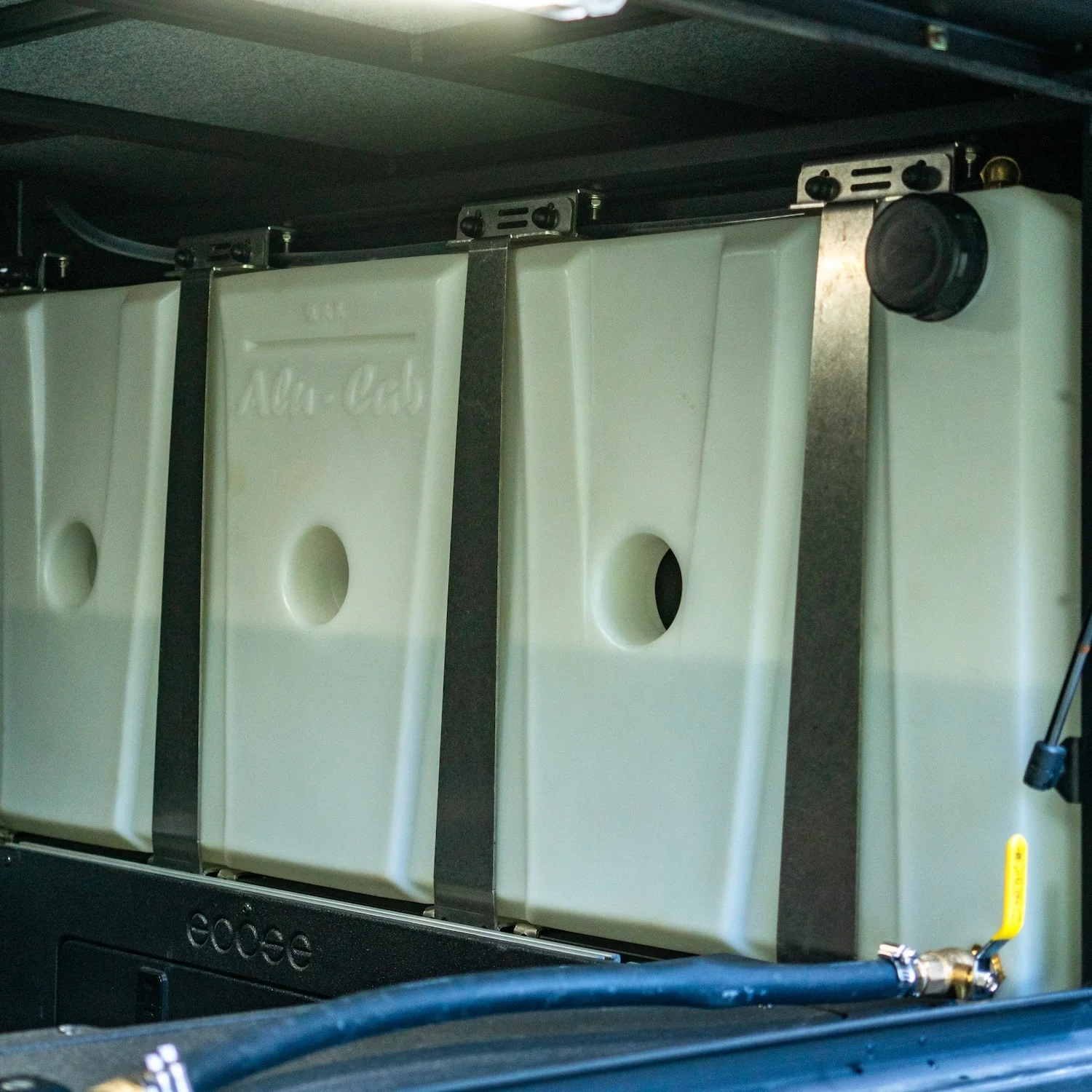

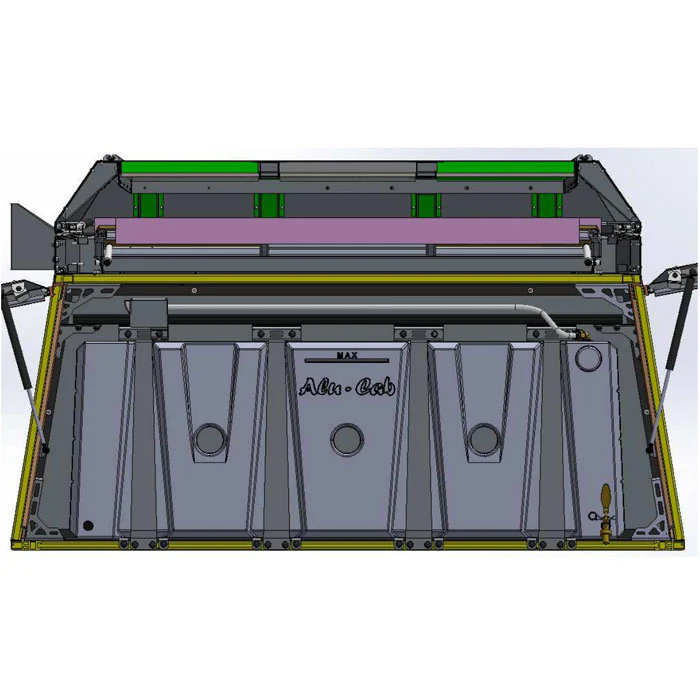

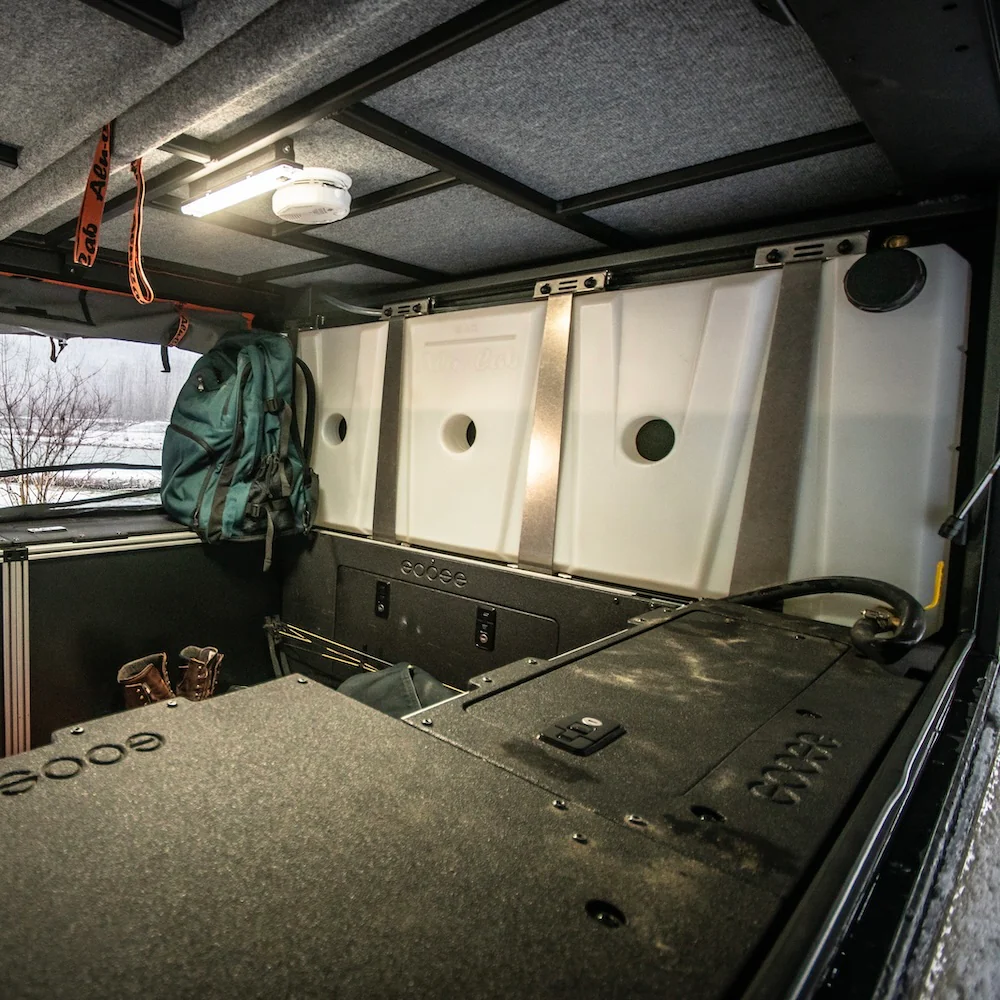

The Alu-Cab Water Tank is a 50 litre water tank, designed to mount internally, up front, in Canopy Campers, Alu-Cabin's as well as the new ModCAP series of products.

FEATURES:

• Made from LLDPE (Linear Low Density Polyethylene) which complies with FDA regulation 21 CFR 177.1520 for food contact applications.
• The water tank has a clearly marked maximum water level indicator, which coincides with the filling point, using a screw type cap. This ensures that the tank cannot be overfilled.
• The tank has four (4) Brass 1/2″ BSP Female ports, one in each corner to suit the requirements of the end user. Three (3) male plugs are also included in the kit, for the unused ports.
• Our water tank is supplied with stainless steel mounting brackets, a breather assembly with all pipes and fittings, as well as, all outlet fittings and a lockable tap.

Canopy Camper requires Water Tank Kit only - CC-A-WT-KIT
Alu-Cabin requires a Full-Size Adapter Kit - CC-A-WT-FS-KIT

OPTIONAL EXTRAS:

Canopy Camper Water Tank Canvas Bags Kit - CC-A-WT-CB-KIT
Canopy Camper Water Tank Molle Kit - Coming Soon

MASSES & DIMENSIONS:

	MASS (KG)
Water Tank (Empty)	9,50
Water Tank (Full)	59,50
Complete Assembly without bags (Empty)	20,50
Complete Assembly with bags (Empty)	24,00
Complete Assembly without bags (Full)	70,50
Complete Assembly with bags (Full)	74,00
	MM
Water Tank – Length	1468
Water Tank – Width	105
Water Tank – Height	520
Complete Assembly – Length	1468
Complete Assembly – Width (with empty bags)	± 145
Complete Assembly – Width (without bags)	± 135
Complete Assembly – Height	665



FITMENT INSTRUCTIONS
