Old Man Emu BP-51 Suspension Lift Kit | Toyota Tacoma 2005–2023

Premium Ride. Legendary Control.

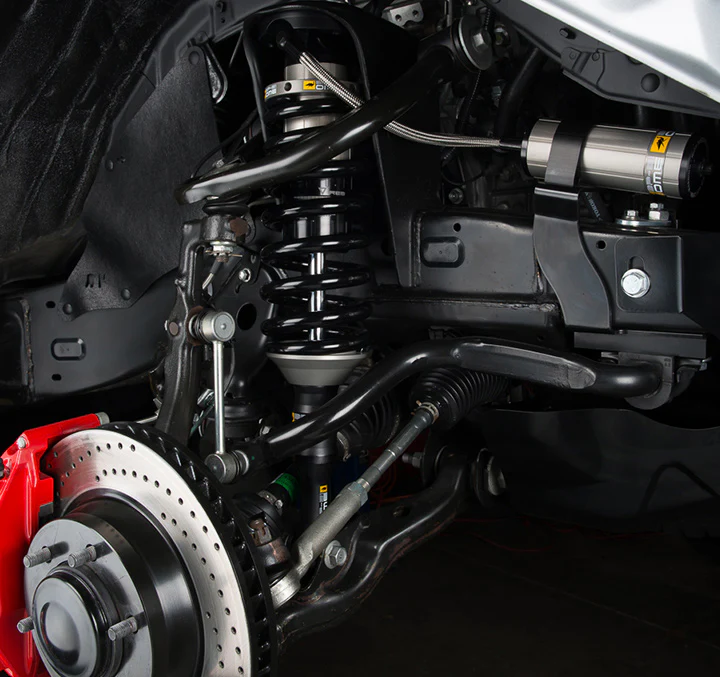

Transform your 2005–2023 Toyota Tacoma into a performance-ready overland machine with the Old Man Emu BP-51 Suspension Kit. Designed and engineered by ARB for serious off-roaders and daily drivers alike, this complete bolt-on suspension system delivers unmatched comfort, control, and adjustability across all terrains.

The BP-51 shock system features internal bypass technology and remote reservoirs, giving you 10 levels of compression and rebound adjustment to dial in your ride for any load or condition. Whether you’re running stock or fully outfitted with bumpers, winches, or RTTs, this kit is calibrated to adapt—no compromises.

Choose between standard (EL111R) or heavy-duty (EL112R) leaf springs based on your rear load requirements. You can also add OME’s UCA0005 Upper Control Arms, which are strongly recommended for proper alignment and enhanced caster correction on lifted vehicles.

Kit Highlights:

BP-51 Internal Bypass Shocks – Fully adjustable front and rear for custom compression/rebound tuning
Remote Reservoirs – Improved cooling and performance on long hauls and rough trails
Engineered for Tacoma – Tuned specifically for the 2005–2023 chassis, including fitment-specific mounts and brackets
OEM Ride Comfort with Off-Road Control – Ideal for weekend warriors and full-time adventurers
Two Rear Spring Options –
- EL111R Standard: Ideal for unloaded or lightly equipped Tacomas
- EL112R HD: Built for vehicles with constant rear load (canopy, fridge, drawer systems, etc.)

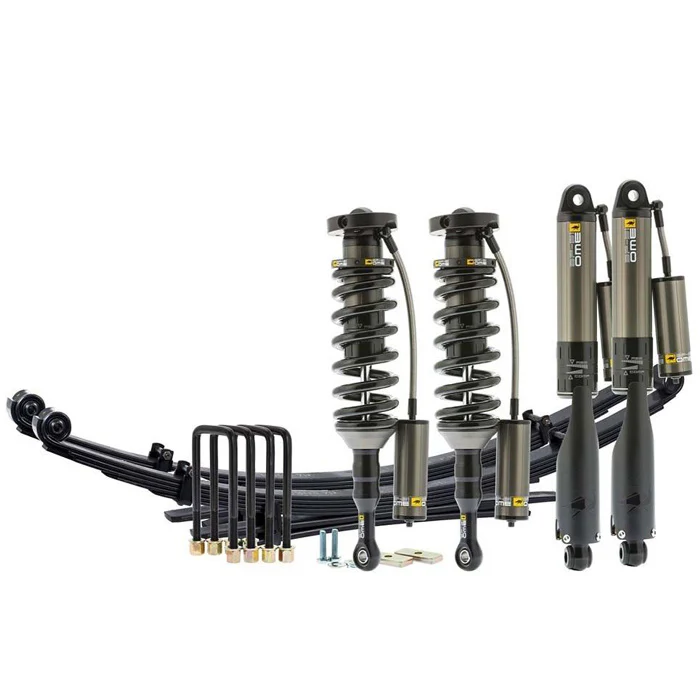

What's Included (per selected variant):

BP5190006L – BP-51 Front Strut (Left)
BP5190006R – BP-51 Front Strut (Right)
VM80010016 – Front Strut Fit Kit
BP5160011L – BP-51 Rear Shock (Left)
BP5160011R – BP-51 Rear Shock (Right)
VM80010017 – Rear Shock Fit Kit
OMEU53B – Rear U-Bolts (x4)
OMESB108 – Rear Spring Bushings (x2)
FK29 – Driveshaft Spacer Kit
EL111R or EL112R – Rear Leaf Springs (x2 – Standard or HD)
Optional: UCA0005 – Old Man Emu Upper Control Arm (x1)

Note: UCA0005 strongly recommended when lifting the front 3” or more. Helps correct caster and maintain proper alignment.

Compatibility:

Fits all 6-lug Toyota Tacoma models from 2005 to 2023, including:

SR5, TRD Sport, TRD Off-Road, TRD Pro, Limited, Trail Edition, X-Runner
Double Cab, Access Cab
4x4 & PreRunner configurations

Features & Benefits

3" front lift height (adjustable coilovers)
2" rear lift (with matched leaf springs)
Direct OE replacement – no cutting or welding
Engineered & tested in Australia
Internal bypass for position-sensitive damping
Improved ride comfort and control under all loads
3-year ARB warranty

2017 Toyota Tacoma Build

Old Man Emu BP-51 Suspension Lift Kit | Toyota Tacoma 2005–2023

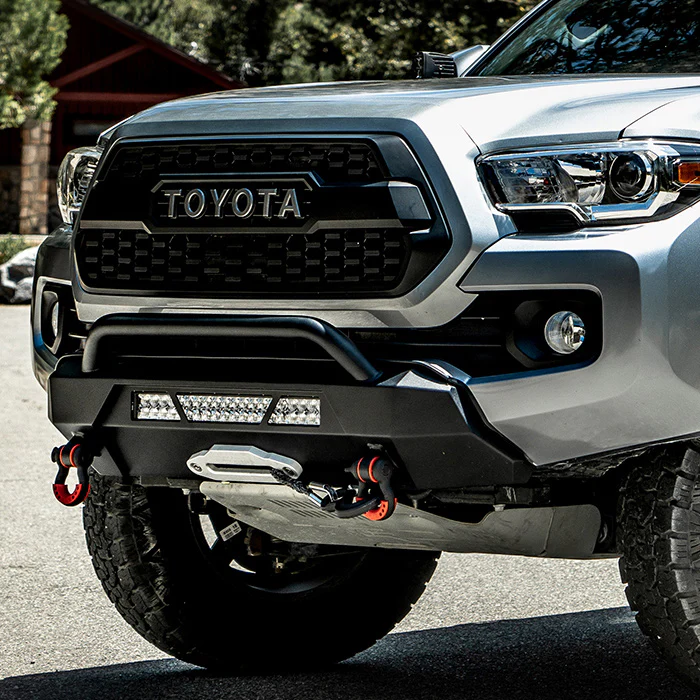

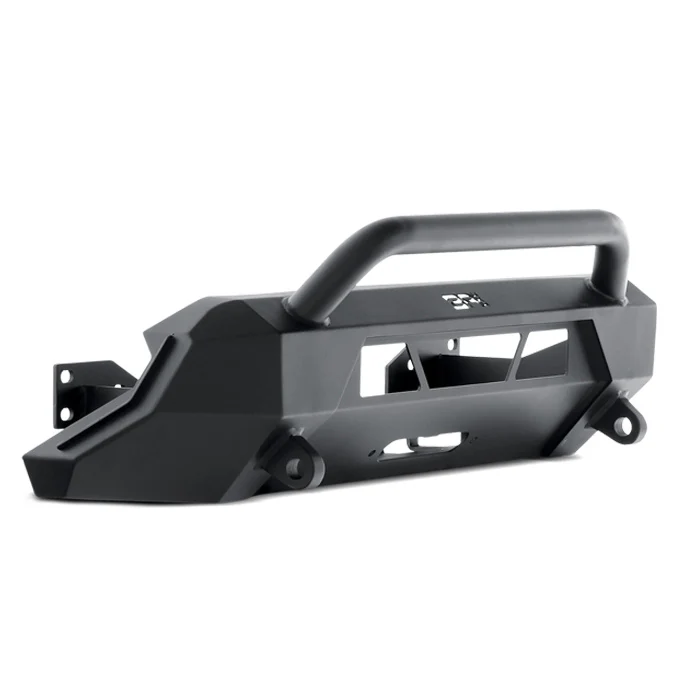

Body Armor 4x4 Hiline Winch Bumper - 2016-2023 Tacoma
