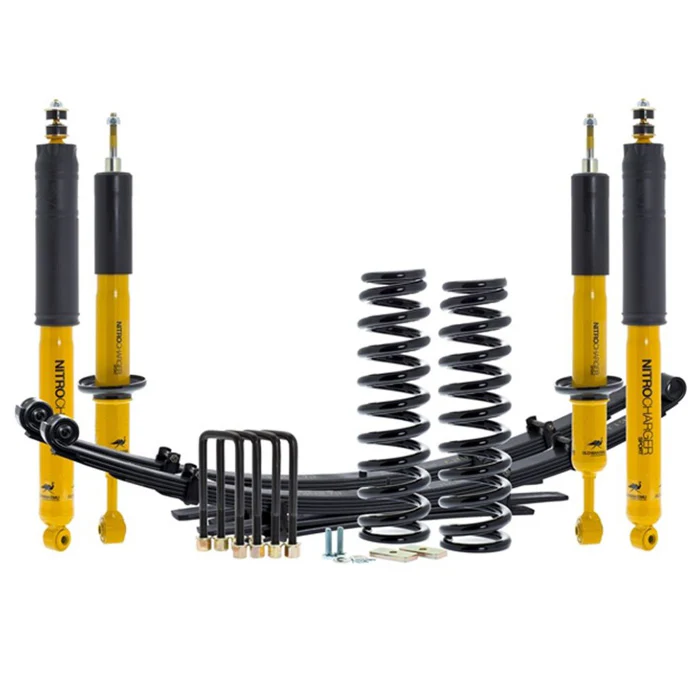

Old Man EMU 2" Lift Kit | Nitrocharger Plus
Fits 2016-2013 Toyota Tacoma

Product Overview

Aftermarket 4wd suspension is extremely complex. Determining the right solution for your vehicle and your requirements demands special attention to many factors. Unlike numerous aftermarket suspension systems, which are only available in a single configuration targeting lift height, Old Man Emu offers a range of tuned and matched integrated suspension systems to ensure the right suspension is available to suit how the vehicle is outfitted and the conditions it will encounter.

Design and Development

Initial evaluation of the GEN3 2016-2023 Tacoma was that the vehicle provided a balanced, compliant ride that gave the OME engineers a good platform for developing a range of suspension solutions. Consideration was given to the front geometry to maximize the lift while maintaining optimal levels of droop, down travel and proper alignment

Old Man Emu Nitrocharger Plus

Engineered for both off-road dependability and smooth on-road driving, the Old Man Emu Nitrocharger Plus struts are a testament to advanced suspension technology. Featuring a twin-tube body and a 5-position spring seat adjustment system that caters to different weights and vehicle setups. Vehicle-specific tuning allows the Nitrocharger Plus to minimize body roll and enhance steering response, providing a controlled and comfortable ride whether you're carrying heavy loads, towing, or navigating through tough terrain. These struts offer a customized and responsive driving experience, ensuring optimal performance in various driving conditions.

Key Features:

Twin-tube body with 5-position spring seat adjustment
Heavy-gauge steel construction for increased strength
Vehicle-specific tuning for varied loads and conditions

*A new range of coils (4xxx series) has been developed to suit the adjustable coil seat on the Nitrocharger Plus struts. These new coil springs are not cross-compatible with Nitrocharger Sport struts or OE struts. (Non-coil over applications continue to use the existing range of Old Man Emu coils).

Lift Kit Parts Breakdown

Front Selection
	Load	Part Number	Quantity	Included in Kit
Coil Springs	No Load	4007	1	Choice of...
	0lbs - 110lbs	4000	1
	110lbs - 220lbs	4002	1
	220lbs - 330lbs	4004	1
	330lbs +	4004	1
Nitro +	Shock	93000	2	Yes
TRIM PACKER		OME95PF5	1	Optional
Rear Selection
	Load	Part Number	Quantity	Included in Kit
Leaf Springs	No Load	EL111R	2	Choice of…
Leaf Springs	Constant 660lbs	EL112R	2	Choice of…
Nitro +	Shock	63091	2	Yes
U-BOLT		OMEU53B	4	Yes
SPRING BUSH KIT		OMESB108	2	Yes
DRIVESHAFT SPACER KIT		FK29	1	Yes

Optional and Recommended

UCA0005 (x1) OME Front Upper Control Arms. The OME Upper Control Arm will provide an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures based off an approximate 50mm lift). Please note after fitment of Upper Control Arm a vehicle wheel alignment will be required.
OMETH002 (x2) OME Strut Top Hat Kit. Strut Top Hat Kit may be required if original equipment it worn. If you're seeking delivery of a pre-assembled strut & coil set for easier installation, a Strut Top Hat kit is required with extra charge for labour.
OME3133 (x2) OME Upper Strut Bushes. Recommended if not purchasing new Strut Top Hat Kit. OE bushes may be re-used if in good condition.
OMEGP9 (x2) OME Greasable Pin Kit. Two (2) Greasable Pin Kits required. One (1) kit for front fixed eye and one (1) kit for shackles pin for leaf spring eye.

2016-2023 Toyota Tacoma | Off Road Accessories

Old Man Emu 2" Nitrocharger Plus Lift Kit | Toyota Tacoma 2016-2023

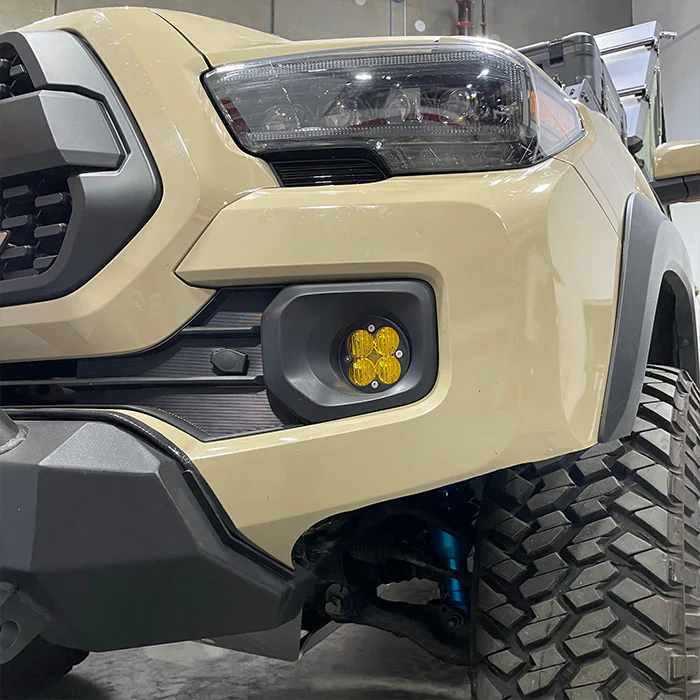

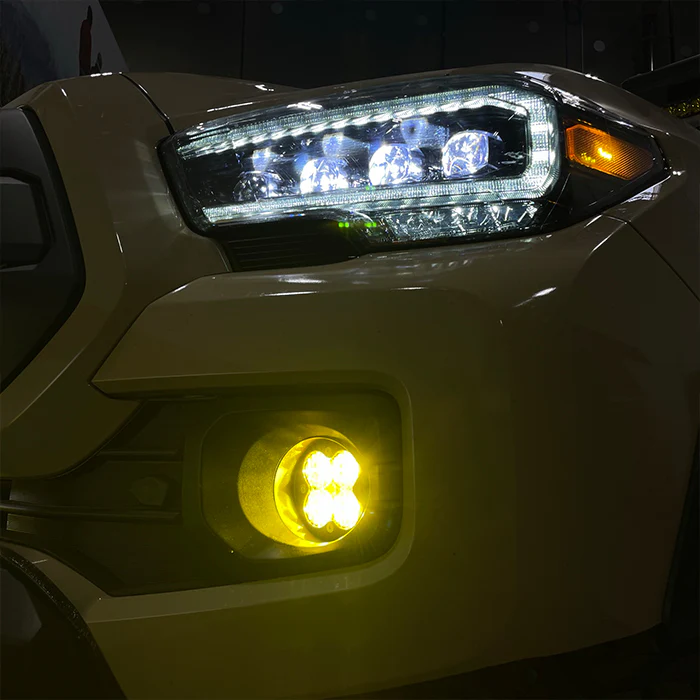

Toyota Tacoma 2016-2023 Squadron Sport Auxiliary Lights

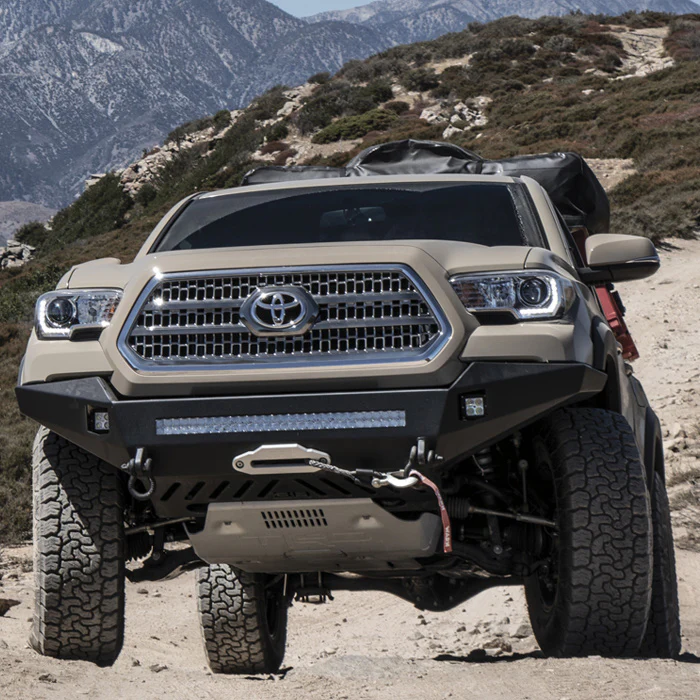

Body Armor 4x4 Pro Series Winch Bumper - 2016-23 Tacoma

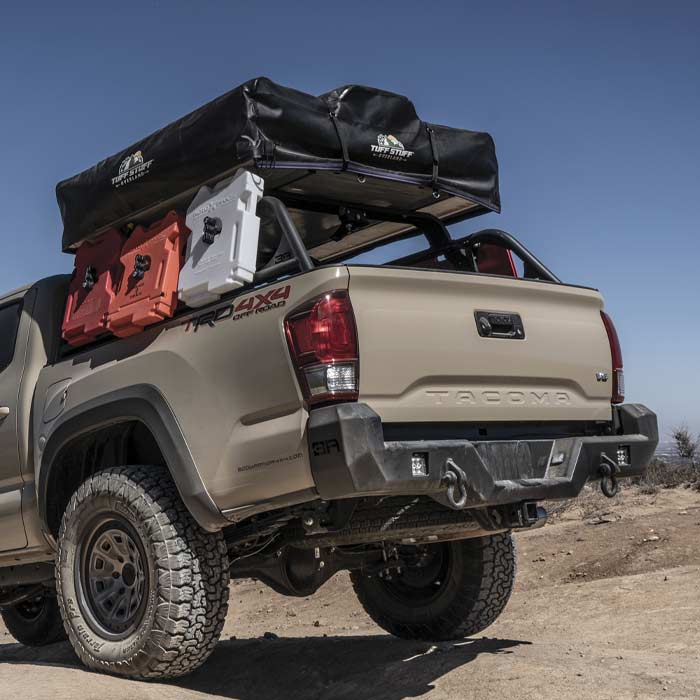

Body Armor 4x4 Pro Series Rear Bumper - 2016-2023 Tacoma

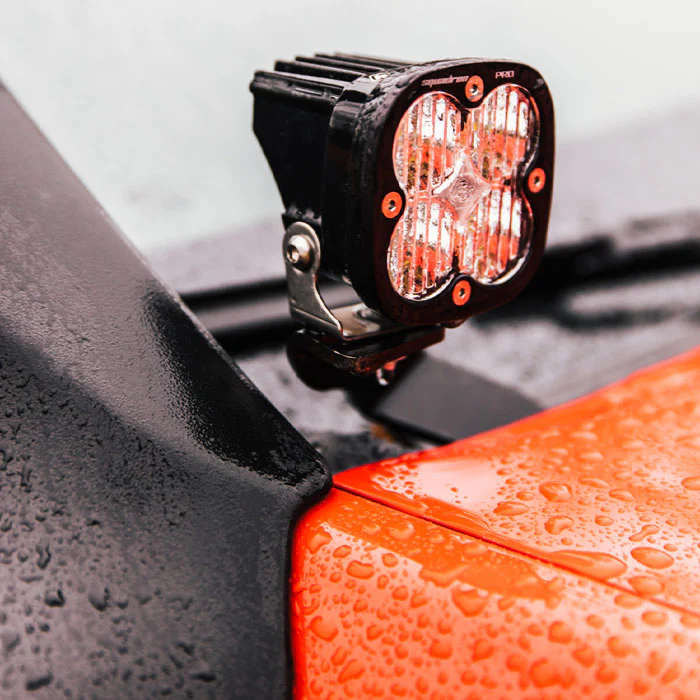

Ditch Light Brackets Toyota Tacoma (16-23)

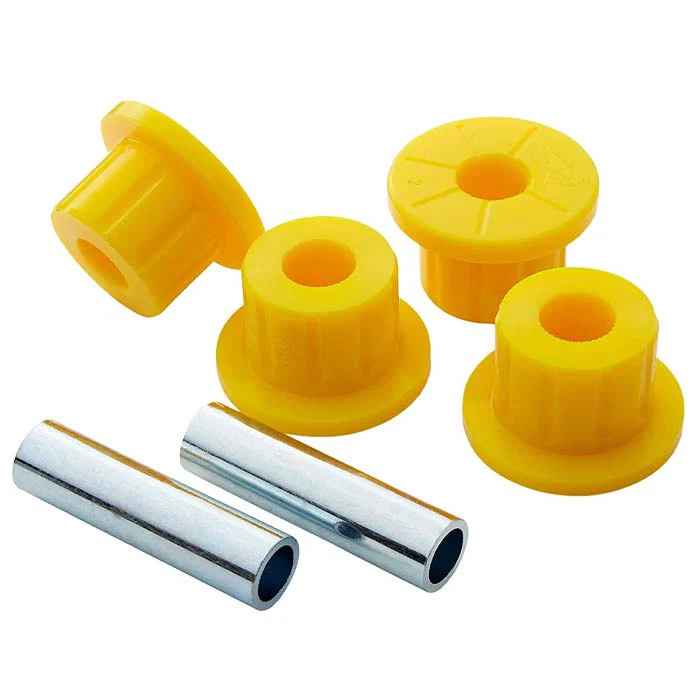

ARB Leaf Spring Bushing Kit

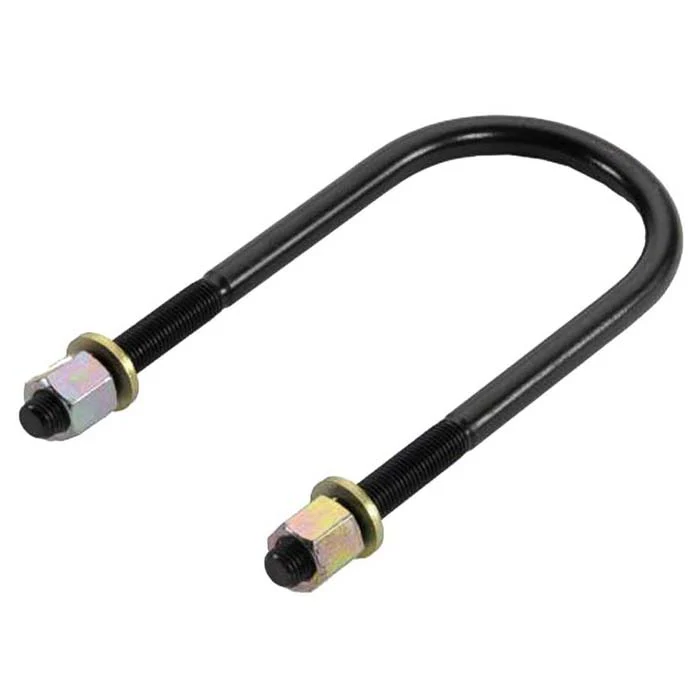

OME U-Bolt Washer & Nut

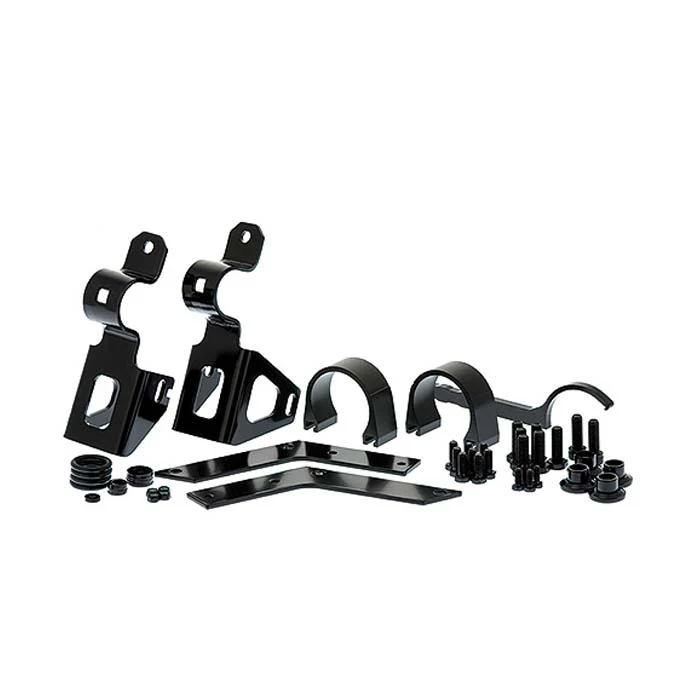

ARB Shock Absorber Reservoir Mounting Kit Front

ARB Leaf Spring Medium Load

ARB Leaf Spring 300KG

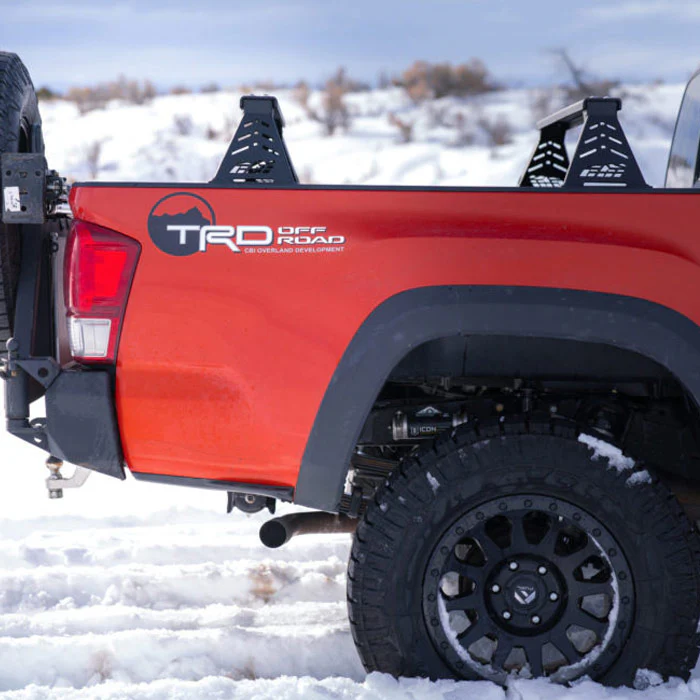

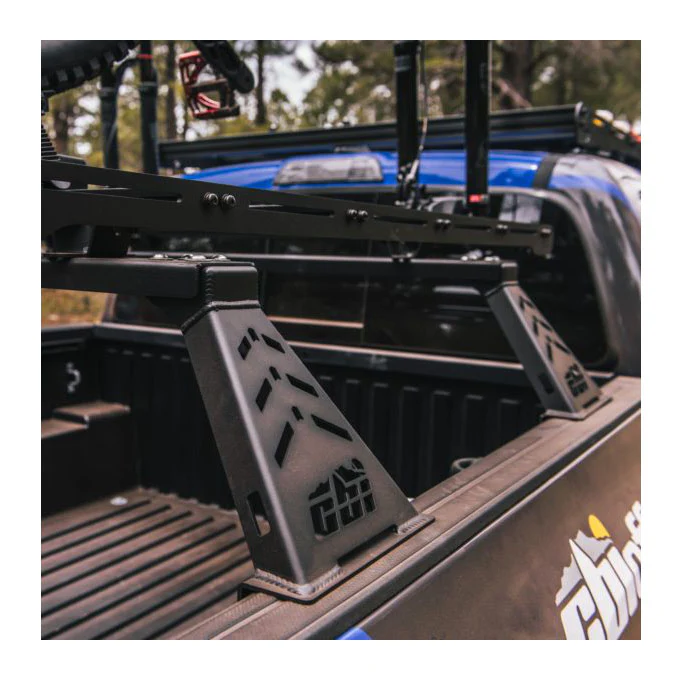

Overland Bed Bars | CBI Offroad

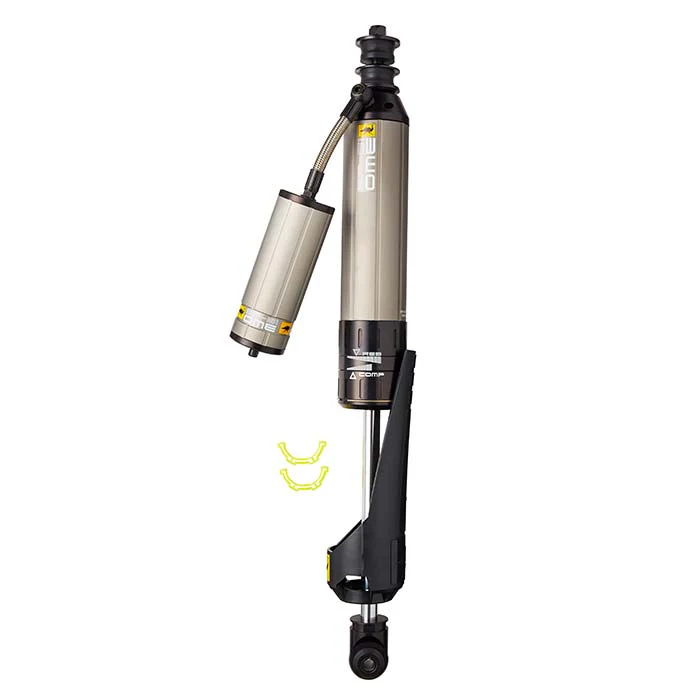

OME BP-51 Shock Absorber - Left
